Bench Vise — Malaysia
Manufactured in Taiwan by Tanko · Malaysia stock · nationwide delivery. Not all combinations are stocked — request a quote to confirm lead time.
-

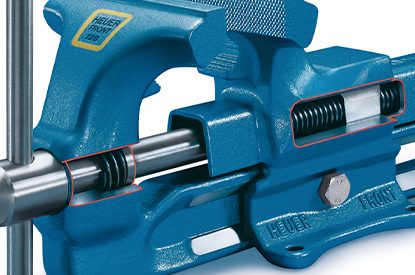

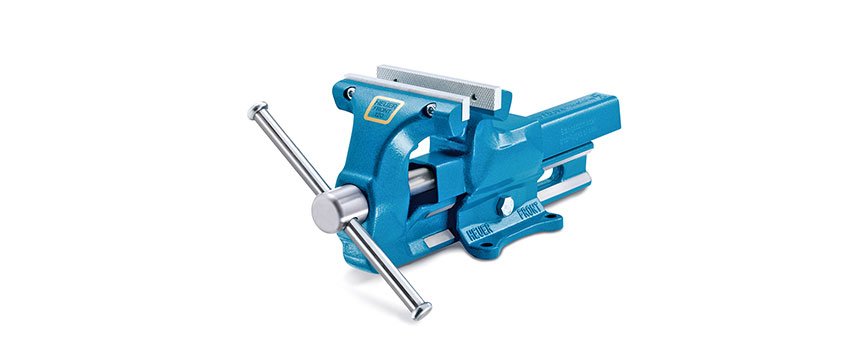

Standard
-

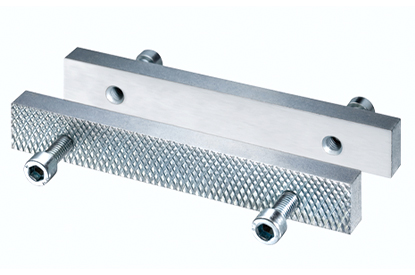

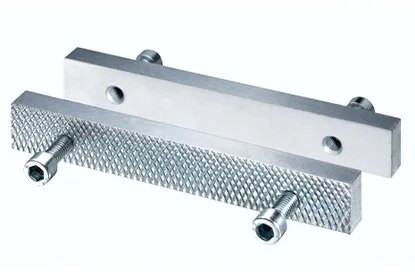

With replaceable jaws
With corrugated and smooth work surfaces
-

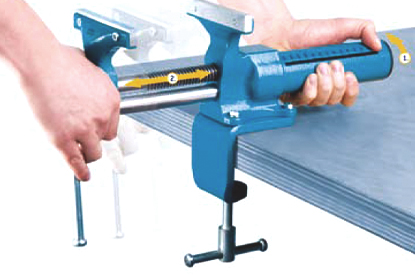

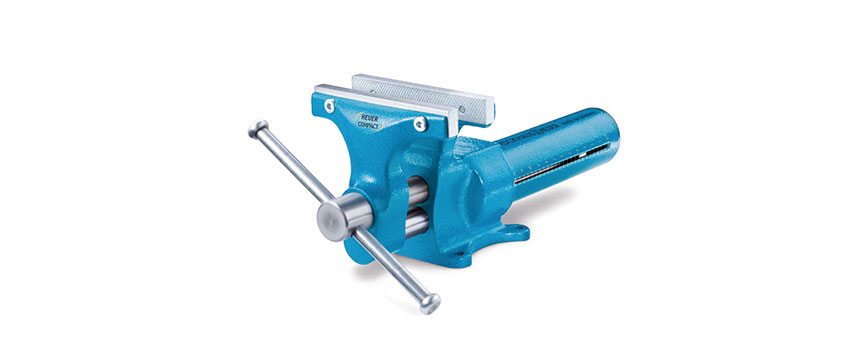

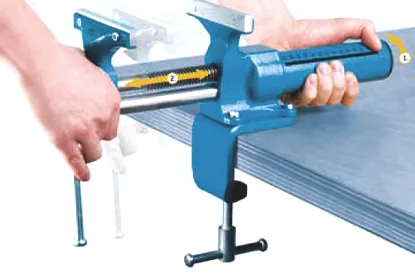

Compact
Small, fast, flexible
-

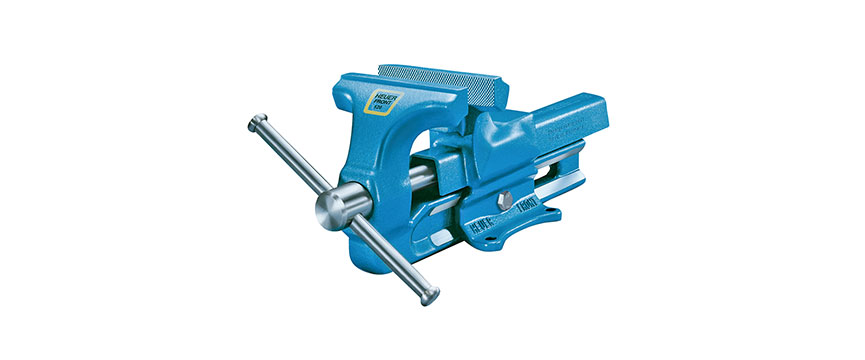

HEUER Vise
The Original Made in Germany. The HEUER Vise is a tool of the highest quality. Made purely of steel of guaranteed robustness. On account of its supreme individual components it overwhelms totally-with its reliability, durability and precision.
-

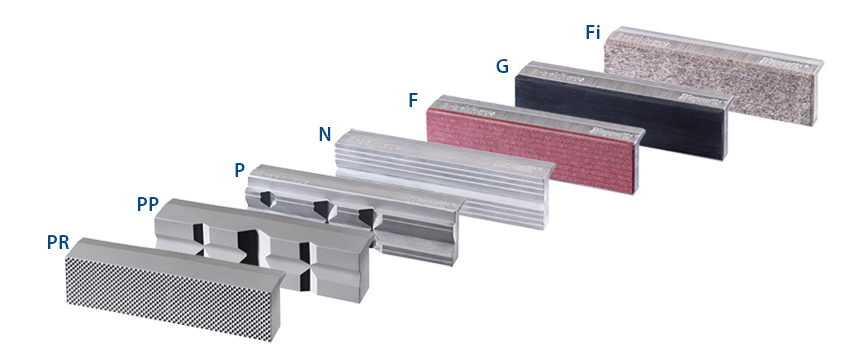

Type PR
(Polyurethane grooved) Clamping of all types of delicate workpieces The material properties are of identical type as the PP-design. The corrugation of the jaws grips the surface without damaging it.
-
Type PP
(Polyurethane prism) Clamping of delicate round and oval workpieces The jaws are made of polyurethane. This highly flexible, resistant and non ageing material is tending to assume the original shape after a deformation by pressure. The work pieces are fixed by means of different sized integrated prisms.
-
Type P
(Prism) Clamping of workpieces of various shapes The jaw blocks are made out of Aluminium with a hardness factor between that of copper and lead. One horizontal prism and three different vertical prisms facilitate clamping of round or oval workpieces. The 90° cutout in the upper part of the jaw blocks facilitate problem free and horizontal clamping of flat material.
-
Type N
(Natural) Clamping of rough to medium machined workpieces The jaw blocks are made out of Aluminium and have a hardness factor between that of copper and lead. 6 grooves hold the workpieces secure. A deeper groove serves to hold shafts and pins etc. secure.
-
Type F
(Fibre) Clamping of workpieces with finely machined or polished faces The faces of the jaw blocks are special abrasion of layers of fibres. There is no deformation of the faces even when clamping warm workpieces.
-
Type G
(Rubber) Clamping of thin walled tubes and shaped pieces, wood and plastic parts The clamping faces are produced from a special synthetic rubber. Three layers of a canvas material appose the natural spring tendency of the rubber during the clamping process. The workpieces are held secure even when very low forces are applied.
-
Type Fi
(Felt) Clamping of extremely delicate workpieces The faces of the jaw blocks are special abrasion resistive felt that matches closely the contours of the workpieces. Even the most delicate workpieces are held securely without any damage.
Model No.Jaw
| Model No. | Jaw width | Span width | Span depth | Diameter | Weight |
|---|---|---|---|---|---|
| WP53100 100 | 100 | 125 | 50 | 16-30 | 4.5 |
| WP53100 120 | 120 | 150 | 65 | 16-55 | 9 |
| WP53100 140 | 140 | 200 | 80 | 27-70 | 16 |
| WP53100 160 | 160 | 225 | 100 | 27-100 | 27 |
| WP53100 180 | 180 | 225 | 100 | 27-100 | 29 |
| Model No. | Jaw width | Span width | Span depth | Diameter | Weight |
|---|---|---|---|---|---|
| WP53118 001 | 120 | 130 | 65 | 15-50 | 4.5 |
| Model No. | Jaw width |
|---|---|
| WP53118 001 | 120.5 |
| Model No. | Jaw width |
|---|---|
| WP53119 120 | 120 |
Model No.Type
- MaterialWP53107 120
9 configurations. Every variant below has its own detail page.
| Model | HEUER Vise | Jaw Width | |
|---|---|---|---|
| WP53100 100 | Standard | 100 | Details → |
| WP53100 120 | Standard | 120 | Details → |
| WP53100 140 | Standard | 140 | Details → |
| WP53100 160 | Standard | 160 | Details → |
| WP53100 180 | Standard | 180 | Details → |

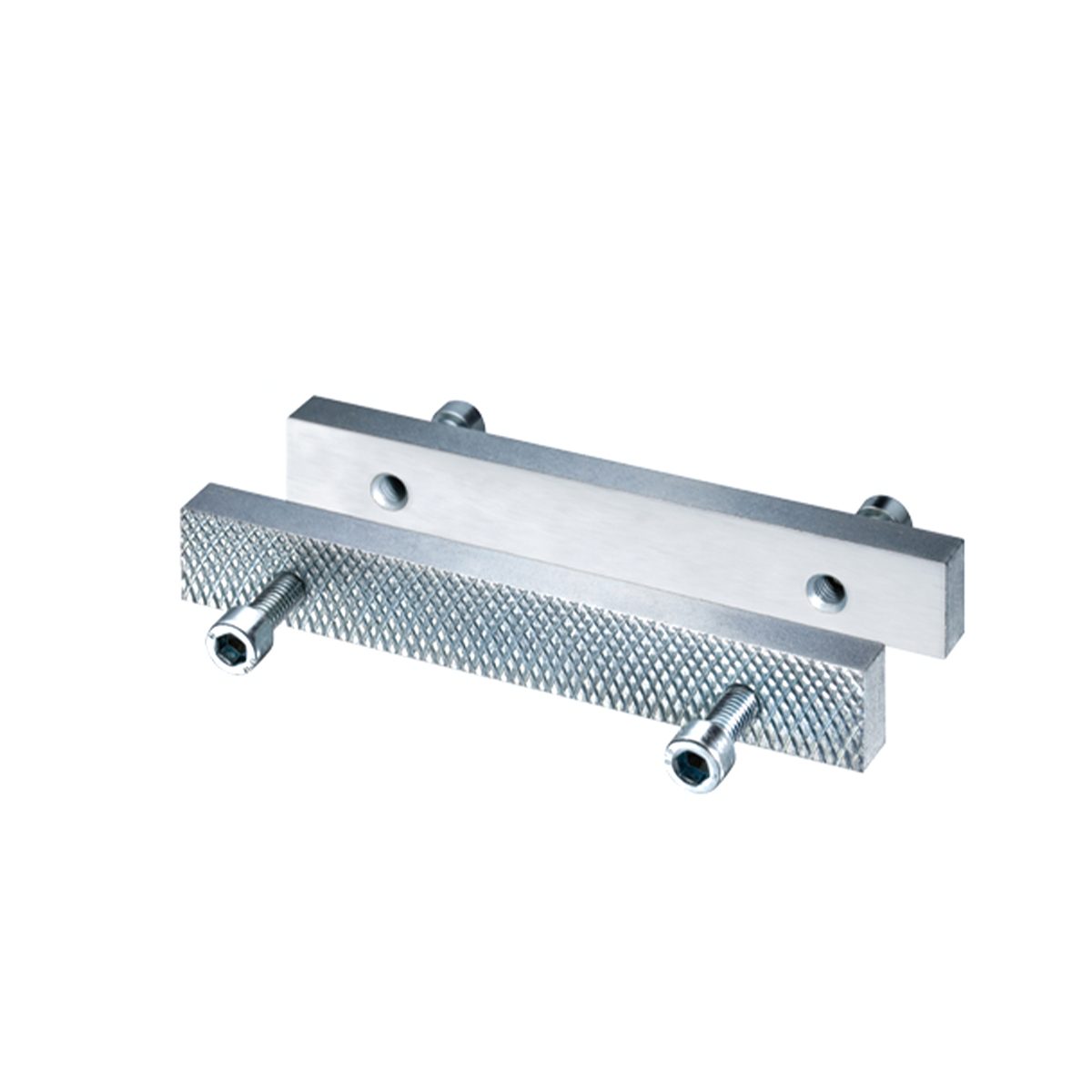

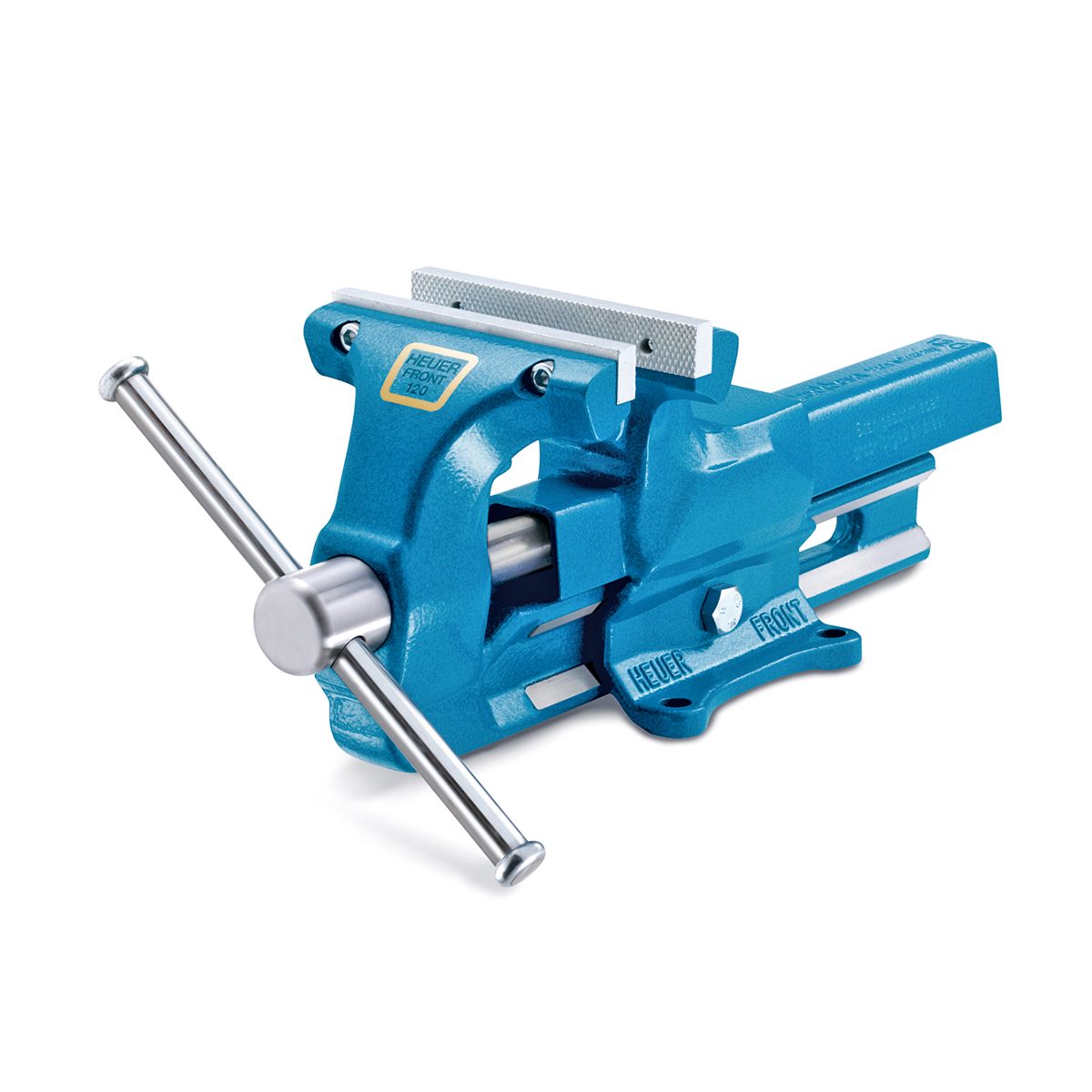

| WP53101 120 | With replaceable jaws | 120 | Details → |
| WP53101 140 | With replaceable jaws | 140 | Details → |
| WP53101 160 | With replaceable jaws | 160 | Details → |
| WP53118 001 | Compact | 120 | Details → |
