Mobile Tool Cabinet: Standard — Malaysia
Manufactured in Taiwan by Tanko · Malaysia stock · nationwide delivery. Not all combinations are stocked — request a quote to confirm lead time.
-

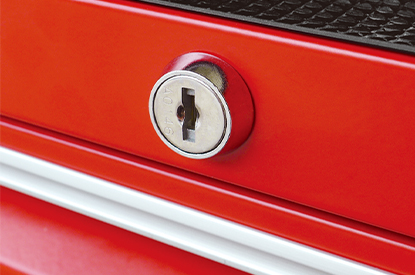

With lock
-

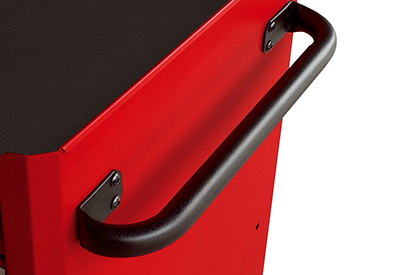

Steel handle
-

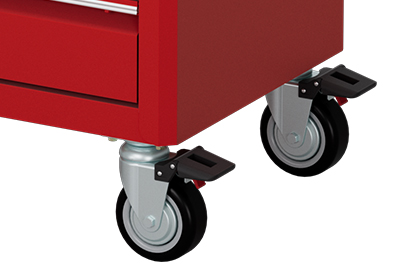

5"x2" PU castors
400kg load capacity
-

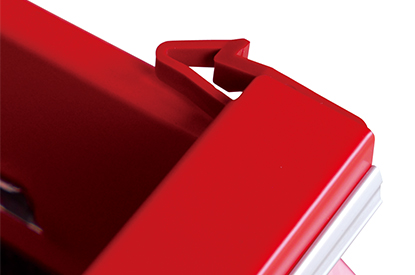

Drawer latch
-

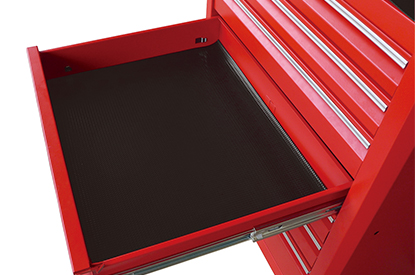

Drawer
95% extension with 45kg load capacity
-

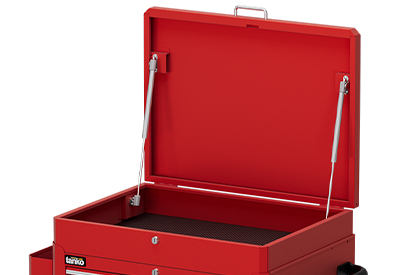

Top chest
is optional
-

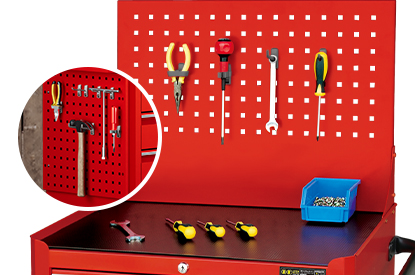

Panel
Hooks can be applied to perforated boards.
-

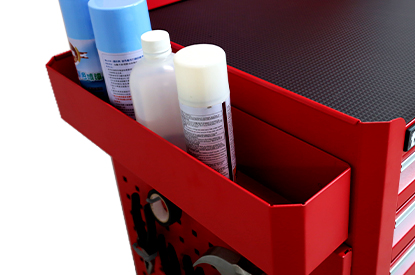

Side tray
-

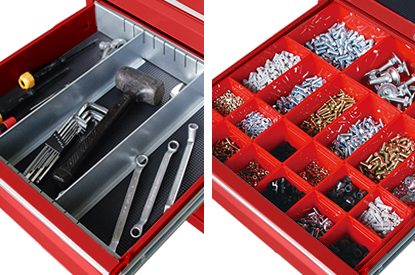

Partitions and division boxes
are optional

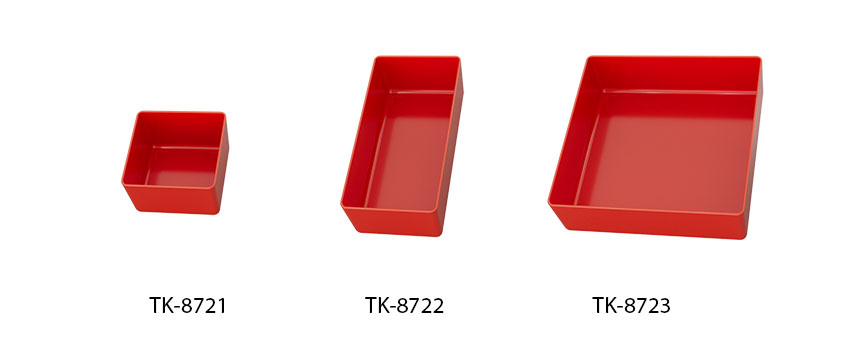

Division Boxes configuration
EGL drawer
Model No. TK-8721 TK-8722 TK-8723 Dimensions (WxDxH) 74x74x45 148x74x45 148x148x45 Material ABS Drawer Height 75 Model No. TK-8731 TK-8732 TK-8733 Dimensions (WxDxH) 74x74x70 148x74x70 148x148x70 Material ABS Drawer Height 100 Unit of measurement mm

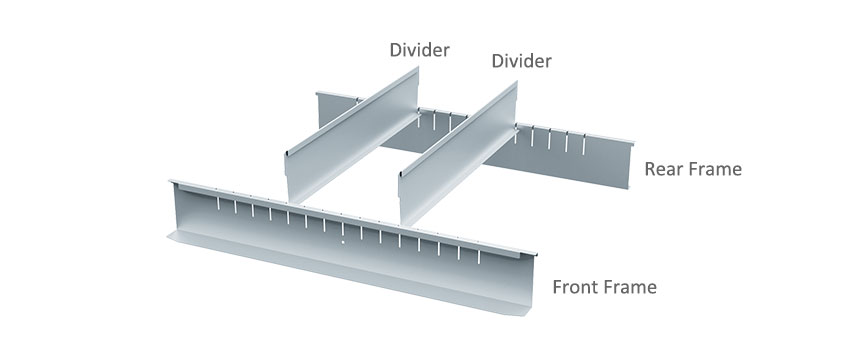

Partitions
Model No. EGPL-2 EGPL-3 EGPL-4 Drawer Height 75 100 150 Unit of measurement mm -

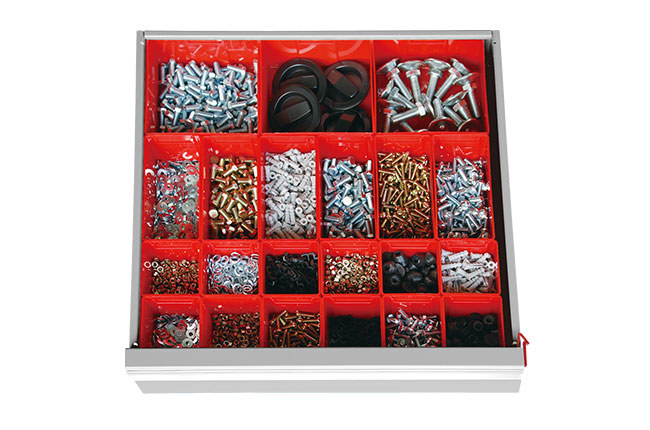

▲ Division boxes application
-

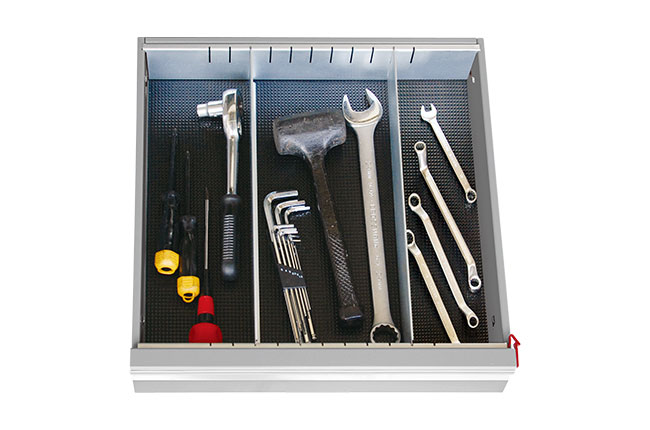

▲ Partitions application

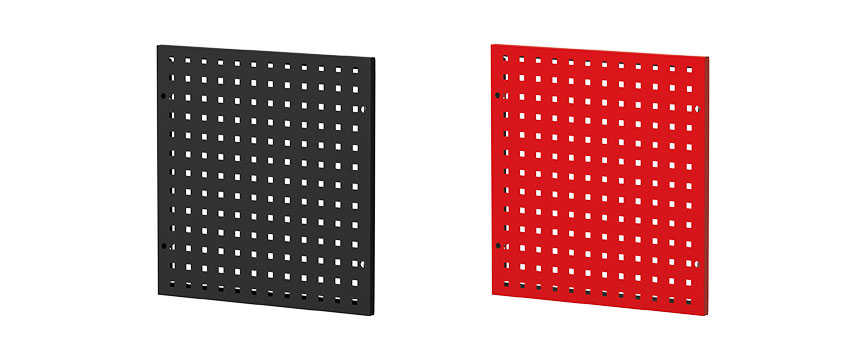

Side Panel
Can be assembled on both sides of the cabinet.
Model No. EGQ-02A Dimensions (WxH) 482x500 Color Black / Red Suited For EGL / EGM standard tool cabinet Unit of measurement：mm

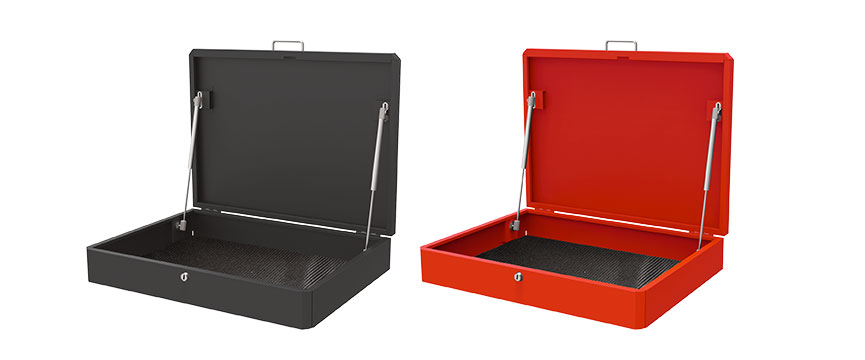

Top Chest
Model No. EGP-03L Dimensions (WxHxD) 663x518x120 Color Black / Red Suited For EGL standard tool cabinet Items Included with PVC mat x 1 pc Unit of measurement：mm
-
Made in Taiwan
-

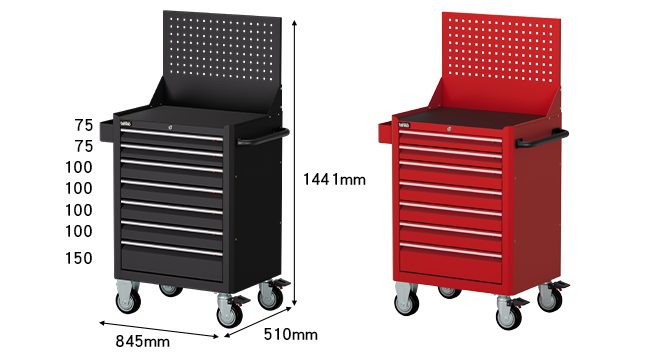

EGL-187MA
Dimensions：W845xD510xH1441 mm Material：Steel Handle：Steel Color：Black / Red Loading：45kg per drawer Items Included：KPQ-B x 1 set ▸ Side panel and top chest are optional
-

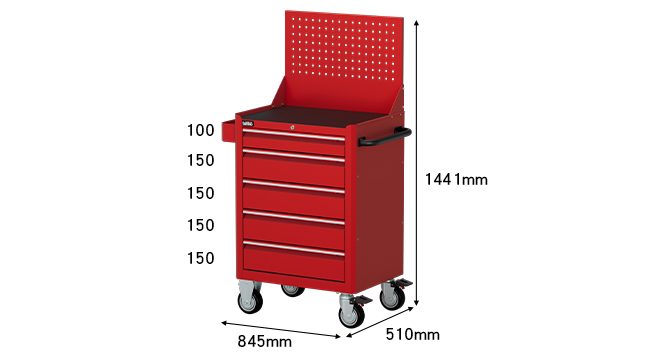

EGL-185MA
Dimensions：W845xD510xH1441 mm Material：Steel Handle：Steel Color：Black / Red Loading：45kg per drawer Items Included：KPQ-B x 1 set ▸ Side panel and top chest are optional
-
EGL-187M
Dimensions：W845xD510xH986 mm Material：Steel Handle：Steel Color：Black / Red Loading：45kg per drawer ▸ Side panel and top chest are optional
-

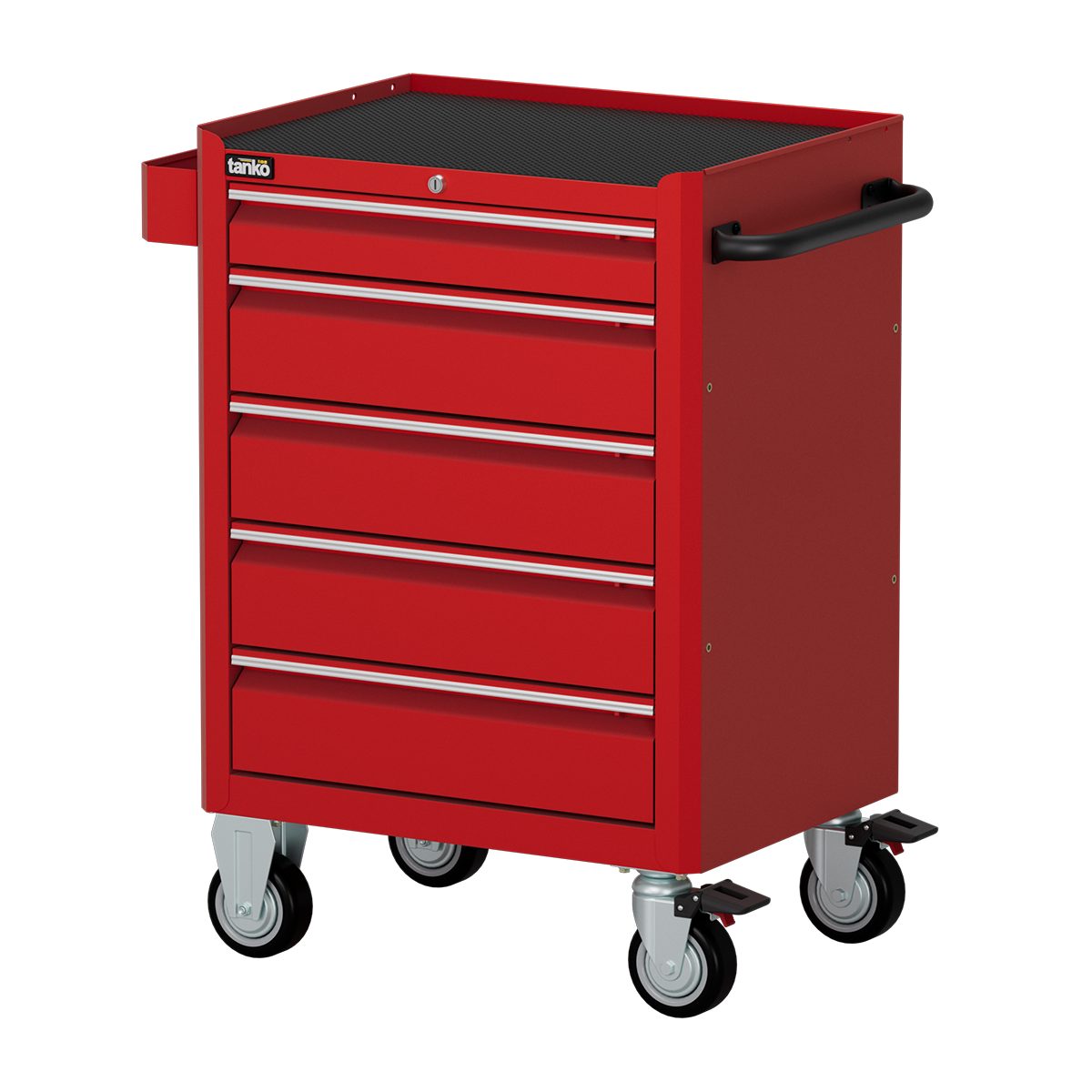

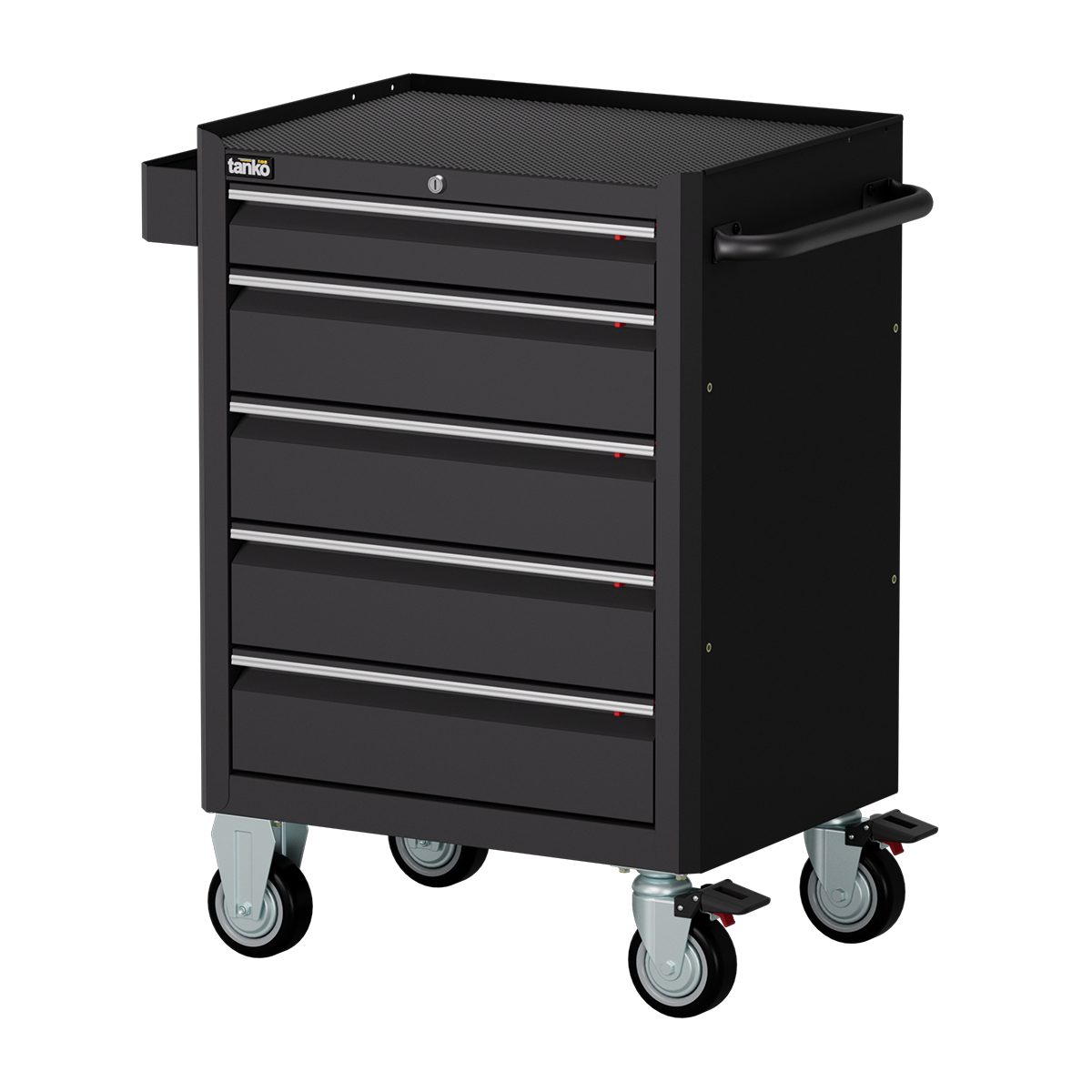

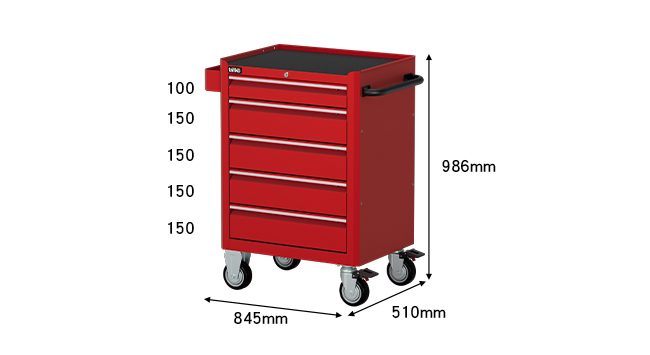

EGL-185M
Dimensions：W845xD510xH986 mm Material：Steel Handle：Steel Color：Black / Red Loading：45kg per drawer ▸ Side panel and top chest are optional
-

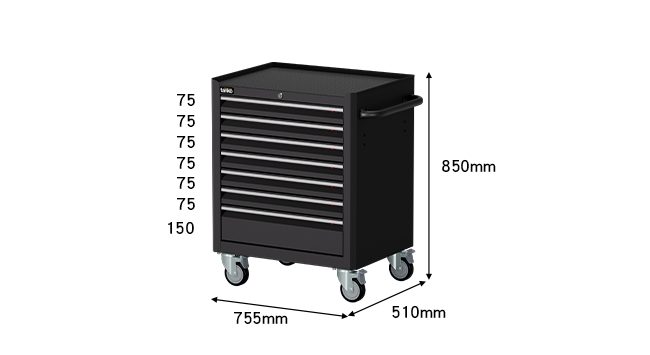

EGL-177M
Dimensions：W755xD510xH850 mm Material：Steel Handle：Steel Color：Black Loading：45kg per drawer
17 configurations. Every variant below has its own detail page.
| Model | Dimensions | Model No. (color) | Accessories | |
|---|---|---|---|---|
| EGL-177M | W755xD510xH850 mm | EGL-177M (black) | None | Details → |
| EGL-185M | W845xD510xH1441 mm | EGL-185M (black) | None | Details → |
| EGL-185M | W845xD510xH1441 mm | EGL-185M (red) | None | Details → |
| EGL-185M + EGP-03L | W845xD510xH1441 mm | EGL-185M (black) | Top chest | Details → |
| EGL-185M + EGP-03L | W845xD510xH1441 mm | EGL-185M (red) | Top chest | Details → |
| EGL-185M + EGQ-02A | W845xD510xH1441 mm | EGL-185M (black) | Side panel | Details → |
| EGL-185M + EGQ-02A | W845xD510xH1441 mm | EGL-185M (red) | Side panel | Details → |
| EGL-185MA | W845xD510xH1441 mm | EGL-185M (black) | Back panel | Details → |
| EGL-185MA | W845xD510xH1441 mm | EGL-185M (red) | Back panel | Details → |
| EGL-187M | W845xD510xH1441 mm | EGL-187M (black) | None | Details → |
| EGL-187M | W845xD510xH1441 mm | EGL-187M (red) | None | Details → |
| EGL-187M + EGP-03L | W845xD510xH1441 mm | EGL-187M (black) | Top chest | Details → |
| EGL-187M + EGP-03L | W845xD510xH1441 mm | EGL-187M (red) | Top chest | Details → |
| EGL-187M + EGQ-02A | W845xD510xH1441 mm | EGL-187M (black) | Side panel | Details → |
| EGL-187M + EGQ-02A | W845xD510xH1441 mm | EGL-187M (red) | Side panel | Details → |
| EGL-187MA | W845xD510xH1441 mm | EGL-187M (black) | Back panel | Details → |
| EGL-187MA | W845xD510xH1441 mm | EGL-187M (red) | Back panel | Details → |
