Tool Cabinet: Standard — Malaysia
Manufactured in Taiwan by Tanko · Malaysia stock · nationwide delivery. Not all combinations are stocked — request a quote to confirm lead time.
-

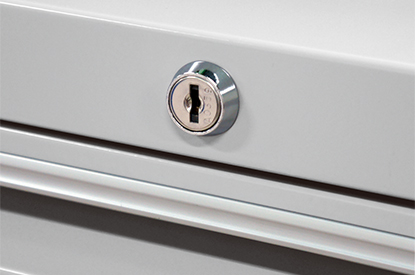

With lock
-
Drawer latch
-

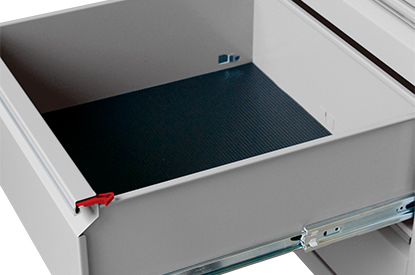

Drawer
95% extension with 45kg load capacity
-

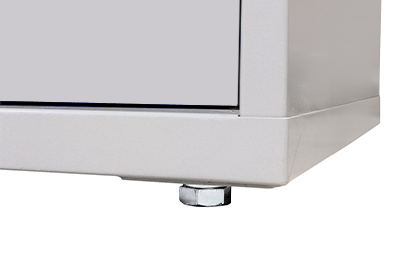

With leveler screws
-
Division boxes
are optional
-
Adjustable partitions
are optional

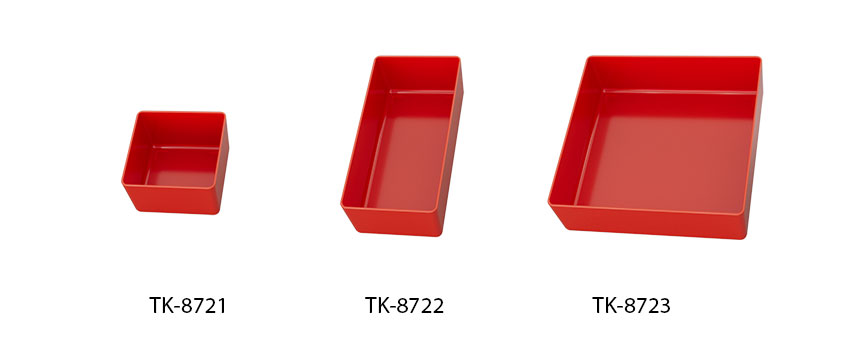

Division Boxes configuration
EGA drawer
Model No. TK-8721 TK-8722 TK-8723 Dimensions (WxDxH) 74x74x45 148x74x45 148x148x45 Material ABS Drawer Height 75 Model No. TK-8731 TK-8732 TK-8733 Dimensions (WxDxH) 74x74x70 148x74x70 148x148x70 Material ABS Drawer Height 100 Unit of measurement mm

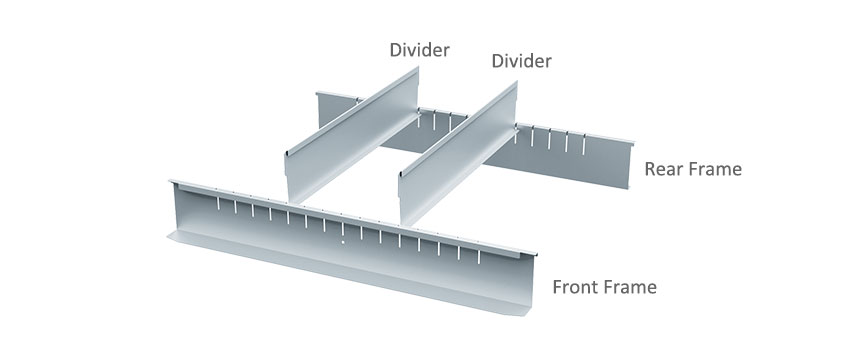

Partitions
Model No. EGPA-3 EGPA-4 EGPA-5 Drawer Hieght 100 150 200 Unit of measurement mm -

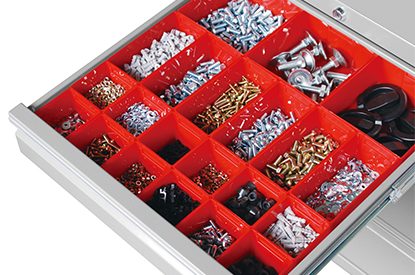

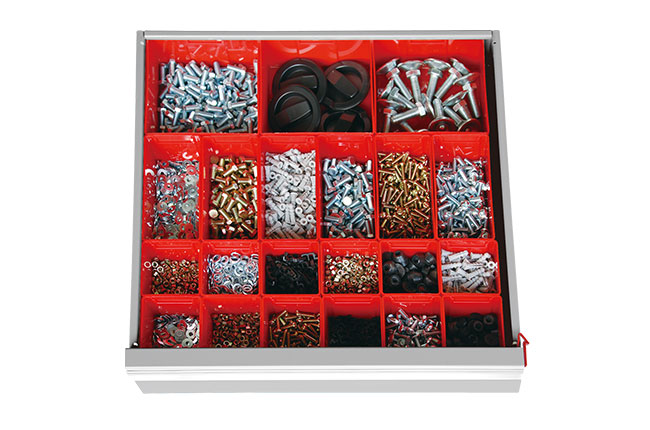

▲ Division boxes application
-

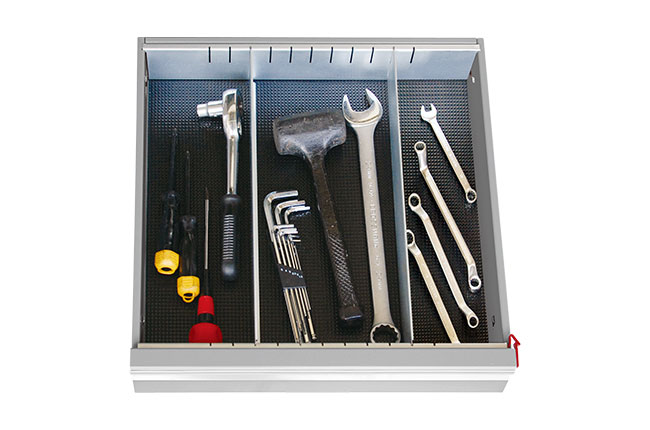

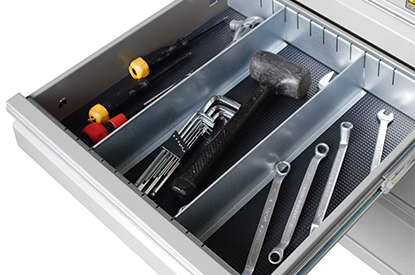

▲ Partitions application
-
Made in Taiwan
-

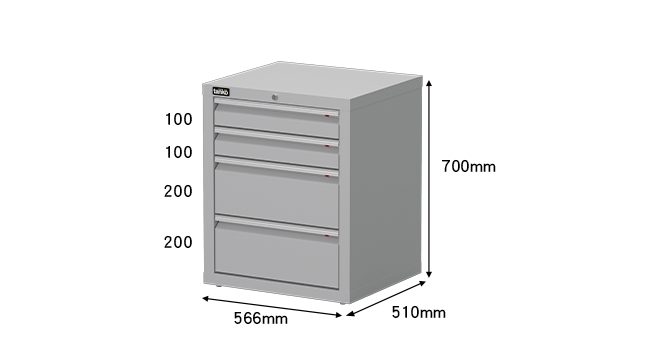

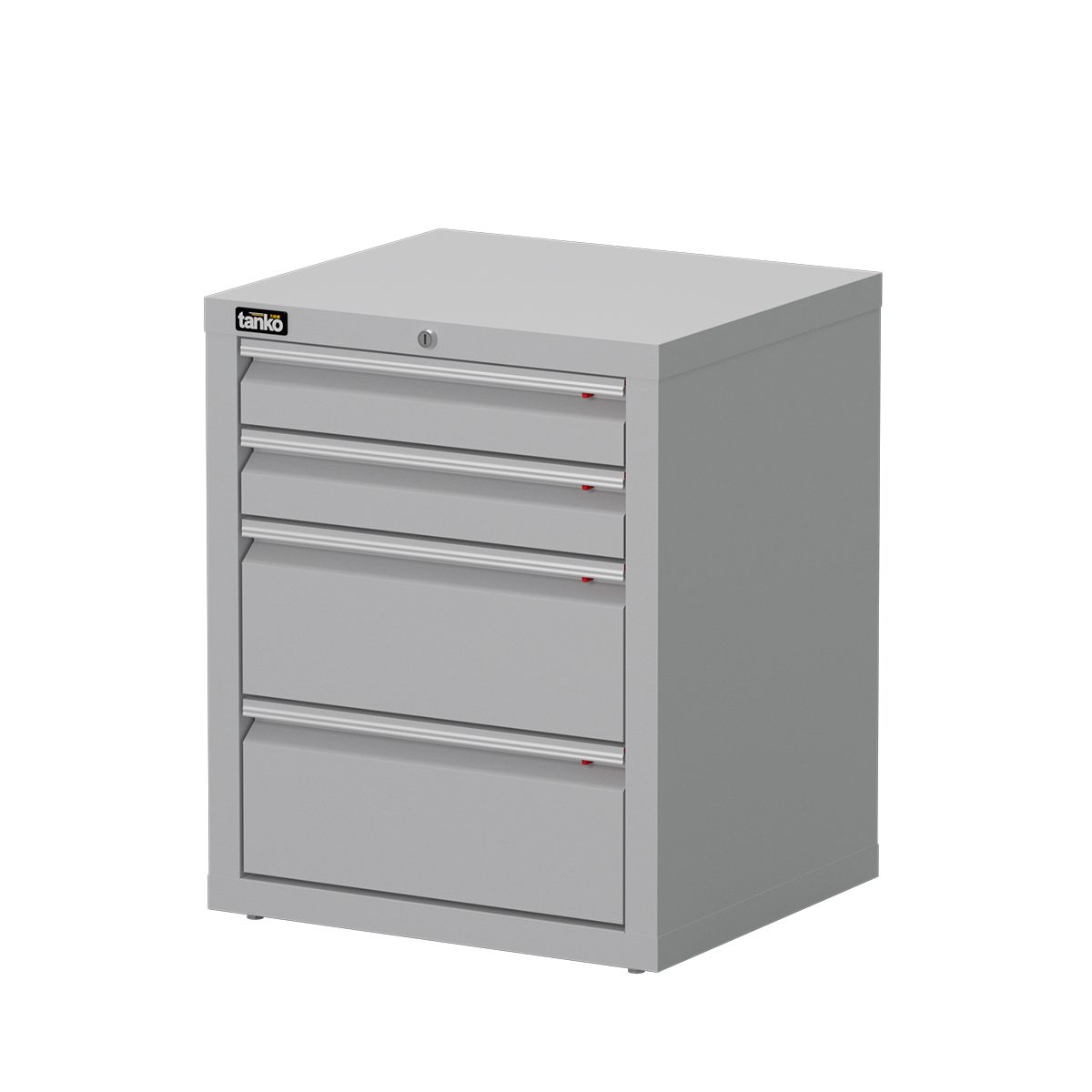

EGA-7041
Dimension：W566xD510xH700 mm Material：Steel Color：Gray Loading：45kg per drawer
-

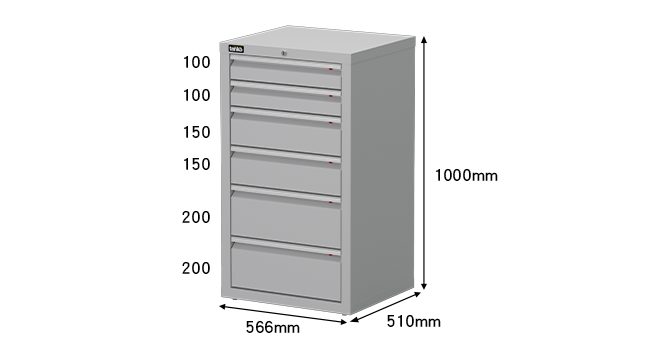

EGA-10061
Dimension：W566xD510xH1000 mm Material：Steel Color：Gray Loading：45kg per drawer
-

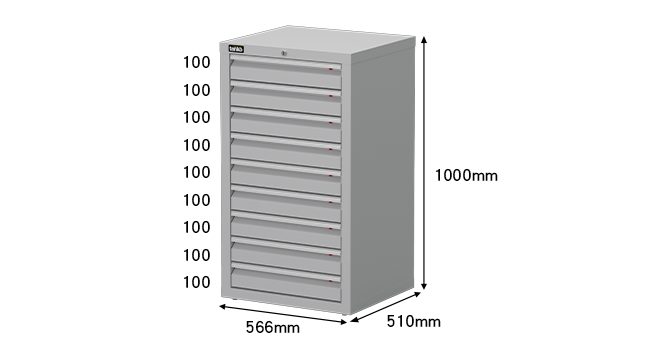

EGA-10091
Dimension：W566xD510xH1000 mm Material：Steel Color：Gray Loading：45kg per drawer
The EGA-1 standard tool cabinet
EGA-1 is Tanko's entry point into fixed tool cabinets — a lockable, steel-drawer cabinet without the extension or load rating of the heavy-duty EA range, suited to a light workshop or a store room rather than a production floor. Drawers extend 95% and carry 45kg each, enough for hand tools and small parts without the reinforced slides the heavier lines use. A central lock secures every drawer at once, and leveler screws set the cabinet level on an uneven floor.
Division boxes and adjustable partitions are optional, letting a drawer be split for small parts or left open for larger tools. Three EGA-1 configurations are available — see the comparison table above for exact dimensions. Primaxs holds Malaysia stock at our Seri Kembangan warehouse, with free delivery and installation in Selangor and Kuala Lumpur and a 1-year local warranty.
