Tool Cabinet - H700: Heavy Duty — Malaysia

•

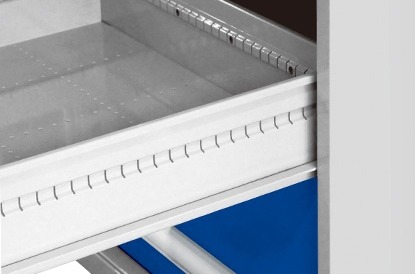

  Standard drawer

  90% extention with 100kg load capacity

•

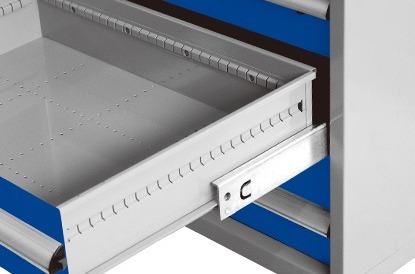

  T drawer

  100% extention with 200kg load capacity

•

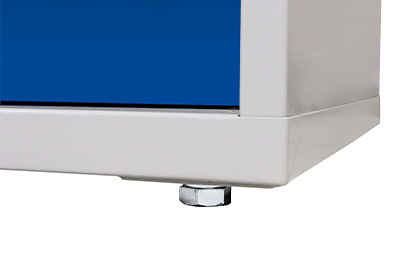

  With leveler screws

•

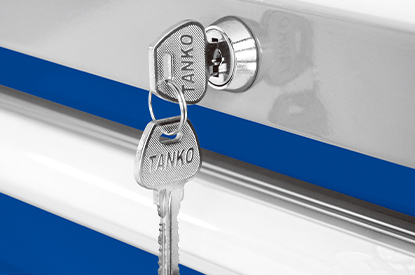

  With lock

•

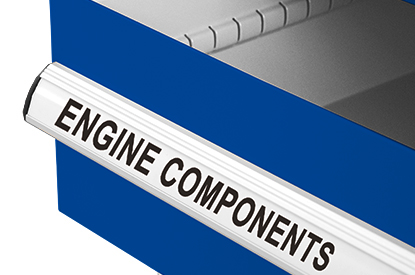

  Full length aluminum handles and labels

•

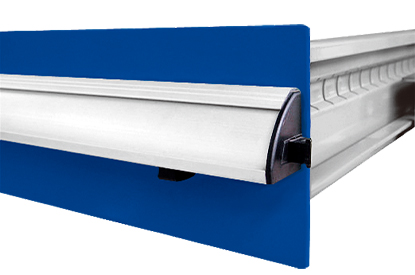

  Drawer latch

•

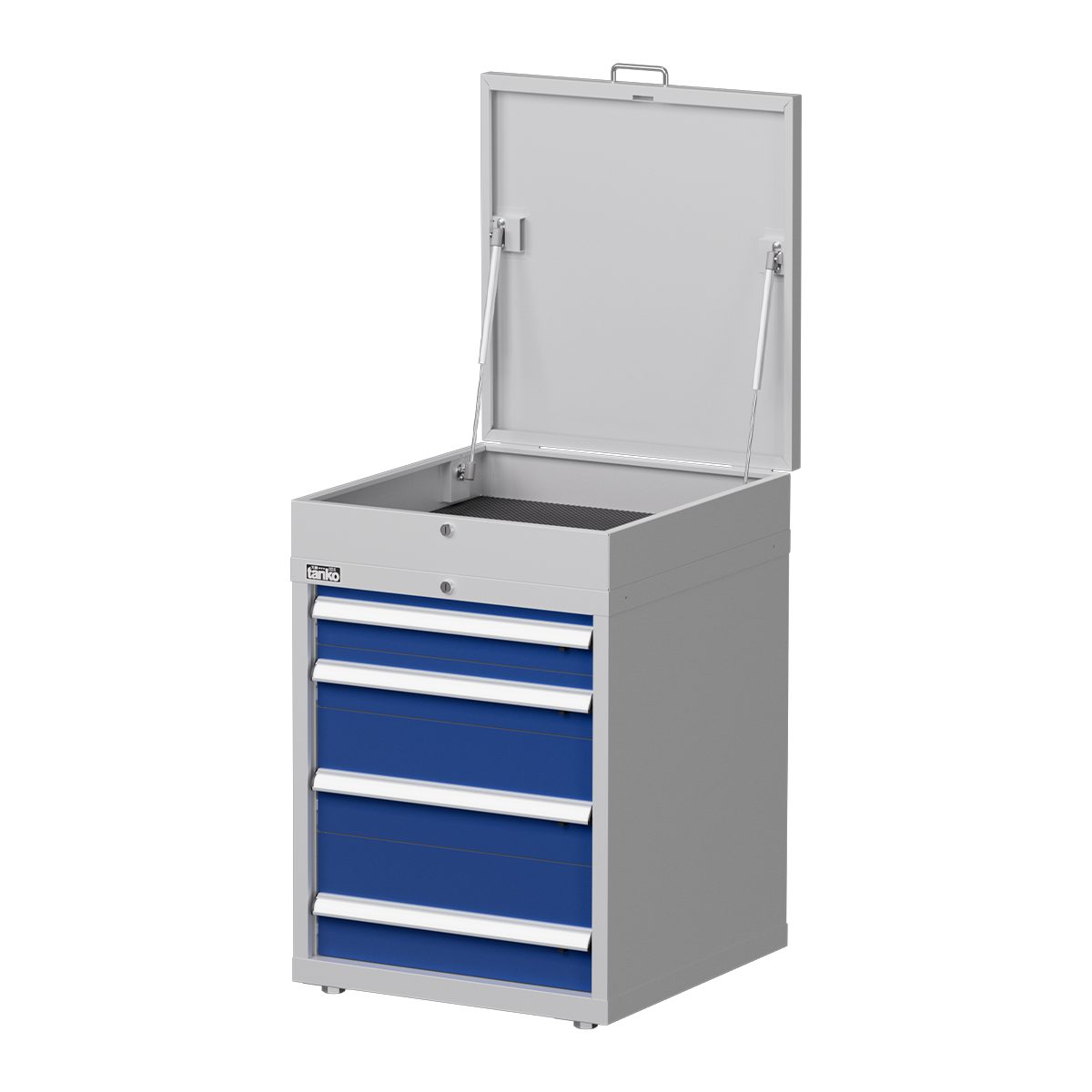

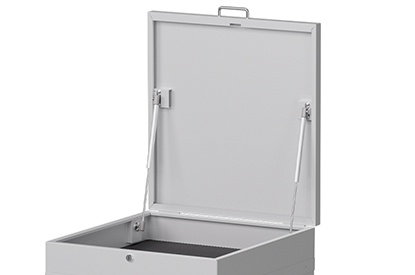

  Top chest

  is optional

•

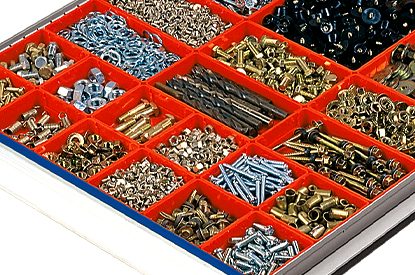

  Division boxes

  1st drawer with division boxes

•

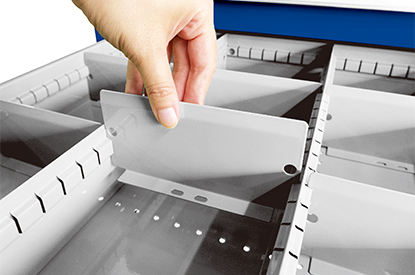

  Adjustable dividers

  The rest with dividers

•
  Step 01

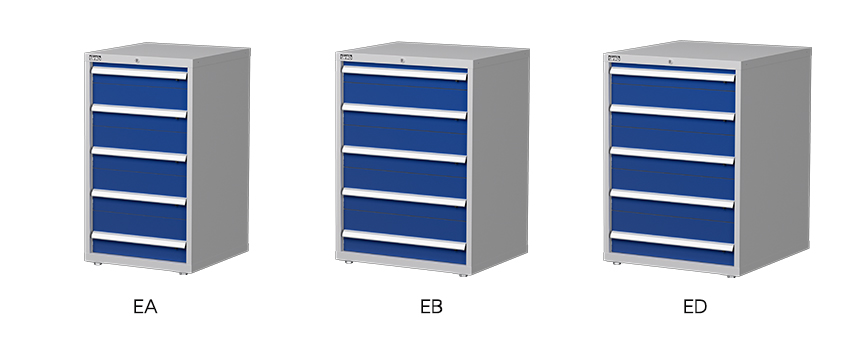

  Step.1

  Model No. EA EB ED Width 566 mm 718 mm 718 mm Depth 607 mm 607 mm 759 mm Step.1 Cabinet Size

•
  Step 02

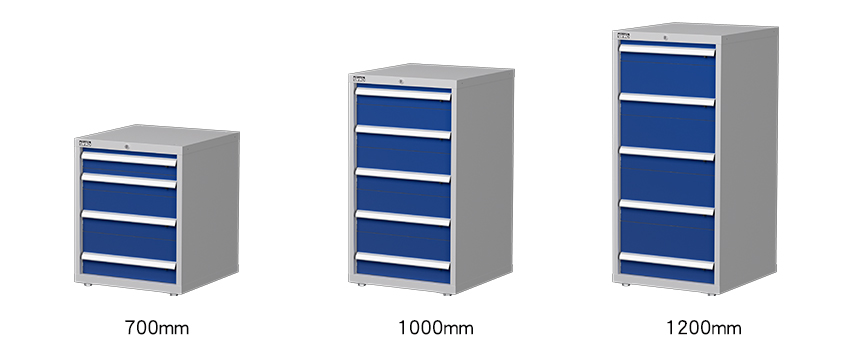

  Step.2

  Cabinet Height

•

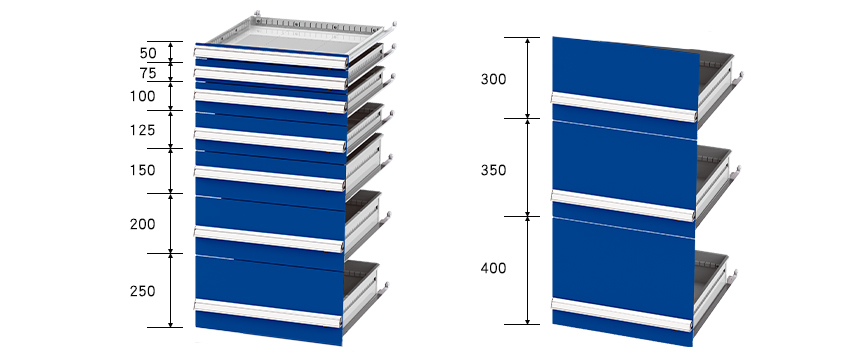

  Step 03

  Step.3

  Drawers

•
  Step 04

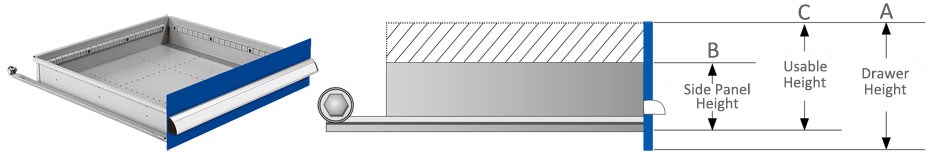

  Drawer Height A 50 75 100 125 150 Side Panel Height B 33 52 77 77 127 Usable Height C 35 57 82 107 132

• Step 05

  Drawer Height A 200 250 300 350 400 Side Panel Height B 127 127 127 127 127 Usable Height C 182 232 282 332 382 Unit of measurement：mm

•
  Step 06

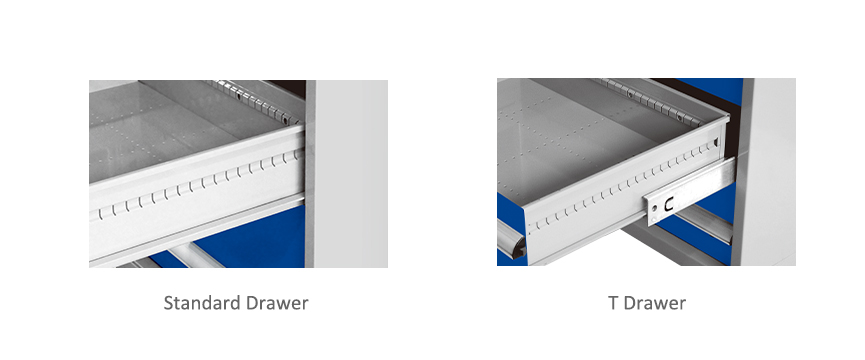

  Step.4

  Silde System Standard drawer : 90% extension T drawer : 100% extension

• T

  Taiwan-manufactured, distributed in Malaysia Standard drawer：100kg load capacity T drawer：200kg load capacity 1st drawer with division boxes, the rest with dividers.

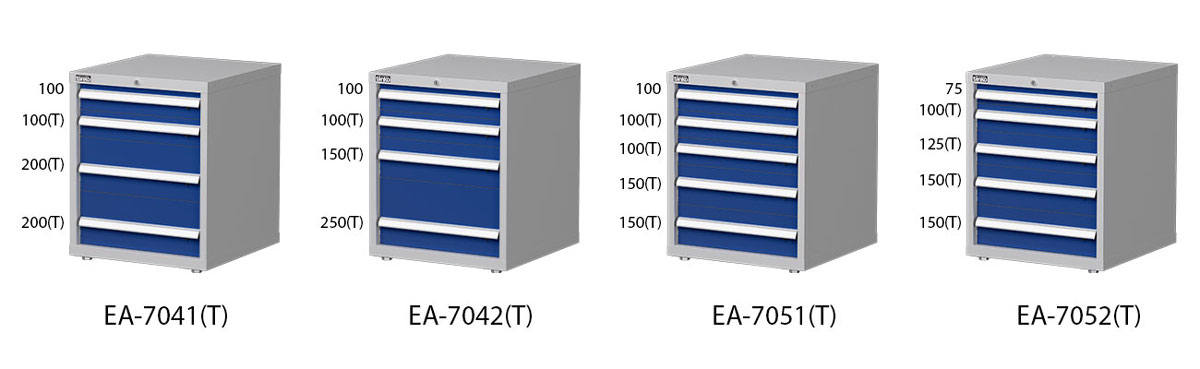

• EA Heavy Duty Tool Cabinet (T= T drawer) Dimensions (WxDxH) Material 566x607x700 Steel Unit of measurement：mm

  EA Heavy Duty Tool Cabinet (T= T drawer)	Dimensions (WxDxH)	Material
  566x607x700	Steel

•

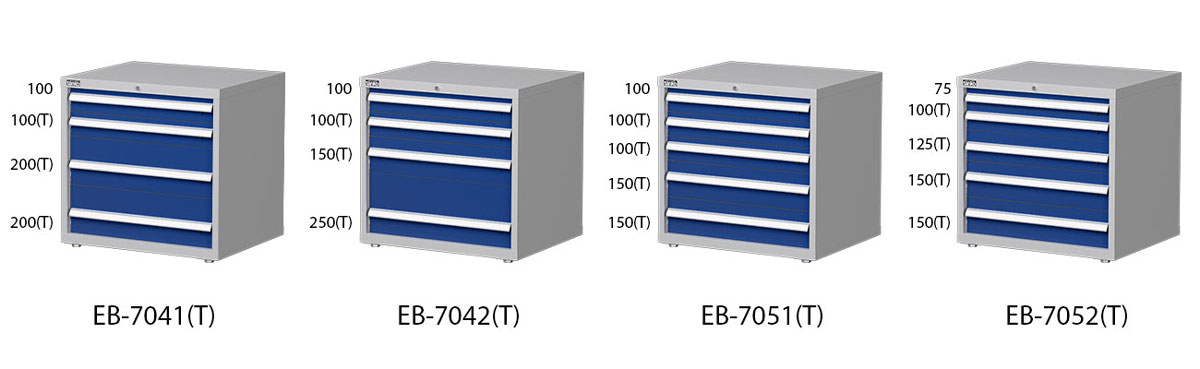

• EB Heavy Duty Tool Cabinet (T= T drawer) Dimensions (WxDxH) Material 718x607x700 Steel Unit of measurement：mm

  EB Heavy Duty Tool Cabinet (T= T drawer)	Dimensions (WxDxH)	Material
  718x607x700	Steel

•

• 1st drawer height (50mm-100mm) : with division boxes

  1st drawer height (50mm-100mm) : with division boxes 1st drawer height 150mm：with 3x3 dividers 1st drawer height 200mm：with 2x2 dividers

•

  EA

  drawer EB drawer ED drawer

•

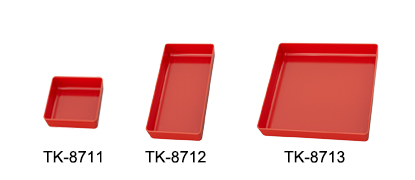

  1st drawer height 50 mm ABS division boxes TK-8711 W74xD74xH26 mm TK-8712 W148xD74xH26 mm TK-8713 W148xD148xH26 mm 1st drawer height 75 mm ABS division boxes TK-8721 W74xD74xH45 mm TK-8722 W148xD74xH45 mm TK-8723 W148xD148xH45 mm 1st drawer height 100 mm ABS division boxes TK-8731 W74xD74xH70 mm TK-8732 W148xD74xH70 mm TK-8733 W148xD148xH70 mm

  1st drawer height 50 mm ABS division boxes
  TK-8711	W74xD74xH26 mm
  TK-8712	W148xD74xH26 mm
  TK-8713	W148xD148xH26 mm
  1st drawer height 75 mm ABS division boxes
  TK-8721	W74xD74xH45 mm
  TK-8722	W148xD74xH45 mm
  TK-8723	W148xD148xH45 mm
  1st drawer height 100 mm ABS division boxes
  TK-8731	W74xD74xH70 mm
  TK-8732	W148xD74xH70 mm
  TK-8733	W148xD148xH70 mm

• Black (PP/anti-static) is optional.

  Drawer height 50mm-150mm : with 3x3 dividers

  Black (PP/anti-static) is optional.

•

  EA

  drawer EB drawer ED drawer

• Drawer height over than 200mm : with 3x3 dividers

  Drawer height over than 200mm : with 3x3 dividers

•

  EA

  drawer EB drawer ED drawer

32 configurations. Every variant below has its own detail page.
