Monitor Arm — KP-4802
Perforated Boards

Monitor Arm — Malaysia

Model No.KP-4802
    Full Specs & Details

    Manufactured in Taiwan by Tanko · Malaysia stock · nationwide delivery. Not all combinations are stocked — request a quote to confirm lead time.

    About the Monitor Arm

    The KP-4802 is a monitor arm that fixes to a Tanko perforated board or workbench upright rather than clamping to a desk edge, sized W134 x H216mm at the mount and built from aluminium alloy and steel. It takes a single LCD or TV screen up to 27 inches.

    Two extension arms move the screen forward and backward, the mount swivels left and right through 180°, and the screen itself rotates a full 360° with ±30° tilt — enough range to position a monitor for a seated or standing operator at an assembly or inspection station without a separate desk stand taking up bench space.

    It suits electronics assembly, quality inspection and CNC machine-tending stations where a screen needs to sit above a busy workbench rather than on it. Stock is held in Seri Kembangan, Selangor, with 3–7 working days on stocked items; free delivery and installation apply in Selangor and Kuala Lumpur, with outstation delivery charged and itemised on the quote, and a 1-year warranty against manufacturing defects administered locally.

    The full range of movement means the same arm suits both a seated operator at a bench and a standing operator at a taller workstation. Cable routing is left to the installer, since arm geometry differs slightly between a bench and a board mount.

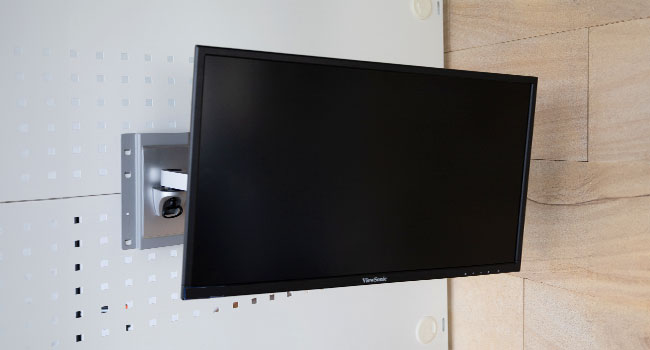

    • Monitor Arm — Available ≤ 27" LCD/TV

      Available ≤ 27" LCD/TV

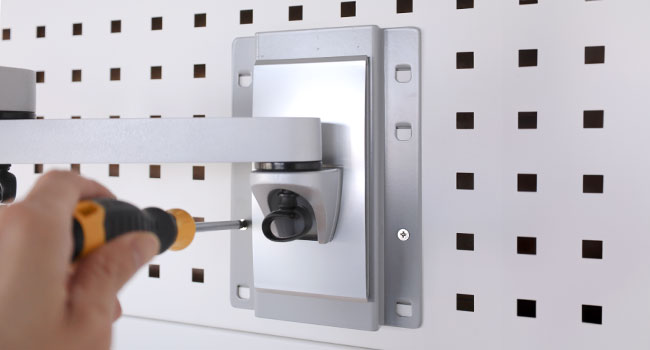

    • Monitor Arm — Work with perforated boards.

      Work with perforated boards.

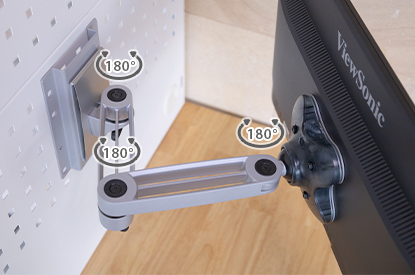

    • Monitor Arm — Swivel left and right

      Swivel left and right

      ±180°

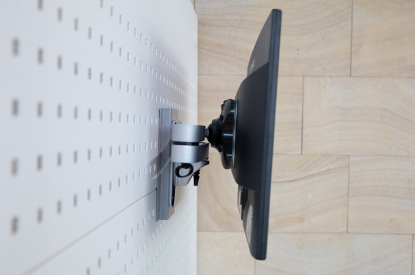

    • Monitor Arm — Two extension arm

      Two extension arm

      Move forward and backward.

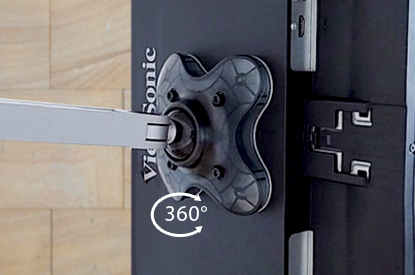

    • Monitor Arm — 360° rotation

      360° rotation

      Tilted up and down ±30°.

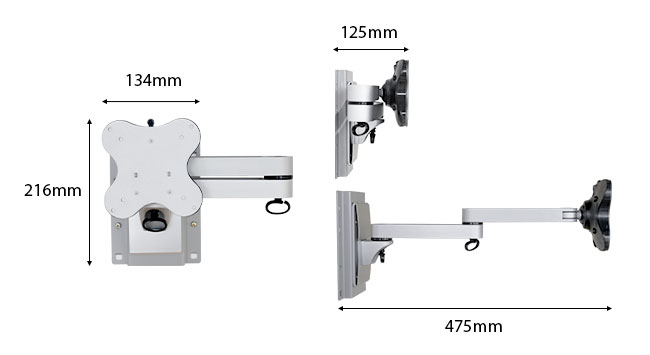

    KP-4802 drawing

    Model No.KP-4802

    • DimensionsW134xH216 mm
    • Materials: Aluminum alloy, steel

    1 configurations. Every variant below has its own detail page.

    ModelDimensions
    KP-4802 W134xH216 mm Details →
