Drill Holder — Malaysia

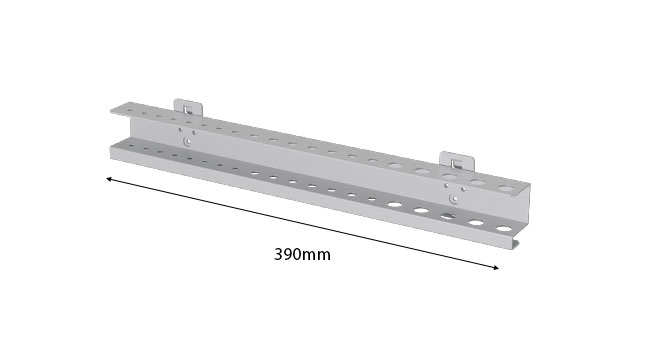

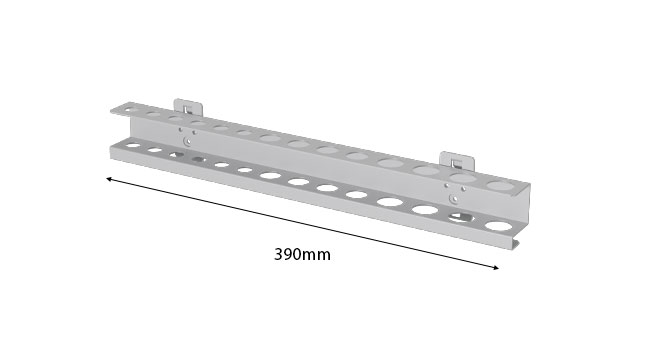

The KP-41 drill holder is an L390mm steel bar for perforated boards, drilled with a row of graduated holes so twist drills sit upright by shank diameter instead of rolling loose in a drawer. Two versions are available: KP-4114, drilled Ø14x6 + Ø19x4 + Ø22x4, and KP-4120, drilled Ø5x8 + Ø8x7 + Ø13x5 — the two cover different ends of a standard drill bit set.

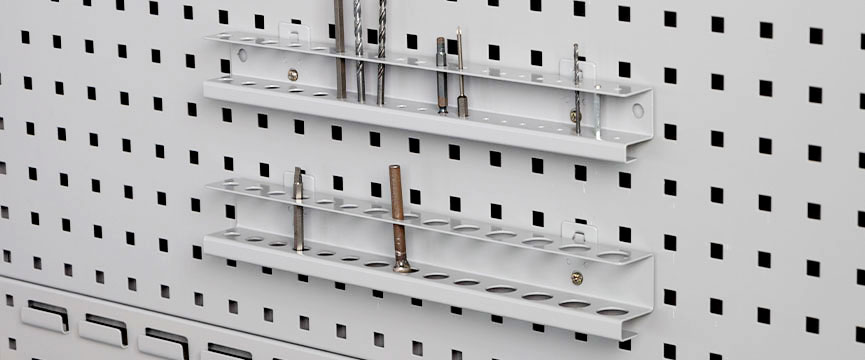

Machine shops, maintenance workshops and toolmakers running a full set of twist drills typically fit both versions side by side on one panel, so every bit from small to large has a marked hole and a missing bit is obvious immediately. Like the rest of the range it mounts on the standard Tanko perforated board hole pitch.

Stock is held in Seri Kembangan, Selangor, with 3–7 working days on stocked items. Delivery and installation are free within Selangor and Kuala Lumpur, with outstation delivery — including East Malaysia and Singapore — charged and itemised on the quote. Covered by a 1-year warranty against manufacturing defects, administered locally.

Ordering both variants together, rather than one, is the more common choice among toolmakers who keep a full metric drill index at the bench. Both are stocked as standard items rather than made to order.
