Parts Cabinet — Malaysia
Model No.TKI-2405
Manufactured in Taiwan by Tanko · Malaysia stock · nationwide delivery. Not all combinations are stocked — request a quote to confirm lead time.
-

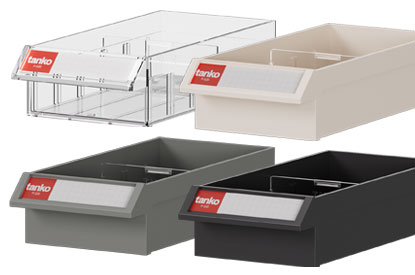

Drawer
-

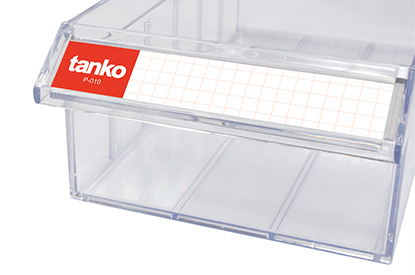

Colored label
-

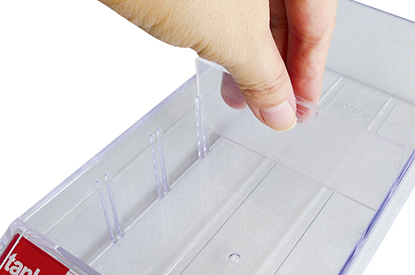

With divider
-

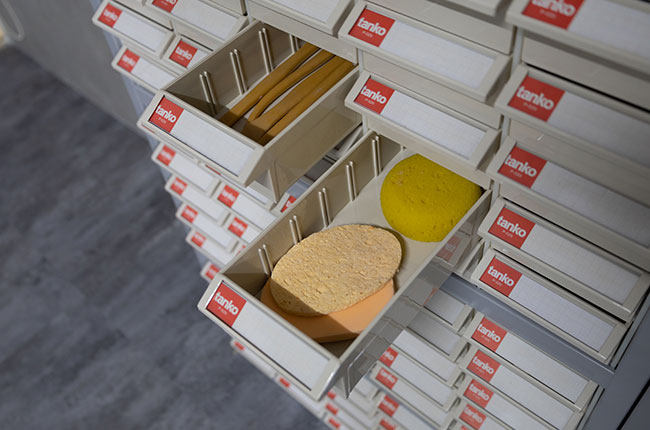

Drawer stop design
-

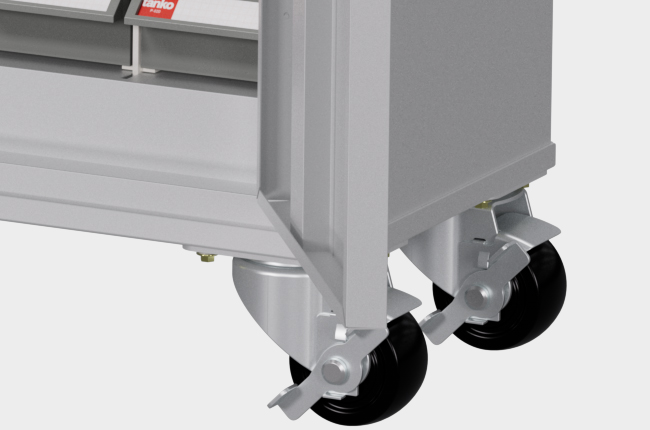

PU castors

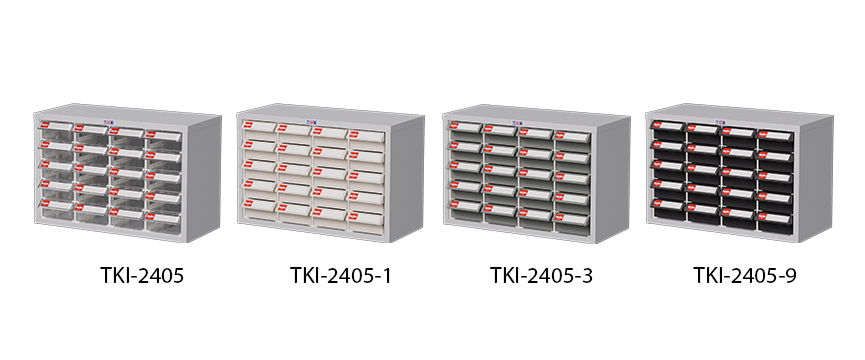

| Model No. | TKI-2405 | TKI-2405-3 | TKI-2405-9 |
|---|---|---|---|
| Dimensions | W460xD230xH310 mm | ||
| Material | Cabinet ▸ Steel | ||
| Drawer | TKI-2 20 pcs | TKI-2-3 20 pcs | TKI-2-9 20 pcs |
| Model No. | TKI-2410 | TKI-2410-3 | TKI-2410-9 |
|---|---|---|---|
| Dimensions | W475xD230xH650 mm | ||
| Material | Cabinet ▸ Steel | ||
| Drawer | TKI-2 40 pcs | TKI-2-3 40 pcs | TKI-2-9 40 pcs |
| Model No. | TKI-2515 | TKI-2515-3 | TKI-2515-9 |
|---|---|---|---|
| Dimensions | W580xD230xH940 mm | ||
| Material | Cabinet ▸ Steel | ||
| Drawer | TKI-2 75 pcs | TKI-2-3 75 pcs | TKI-2-9 75 pcs |
| Model No. | TKI-2515D | TKI-2515D-3 | TKI-2515D-9 |
|---|---|---|---|
| Dimensions | W645xD295xH1000 mm | ||
| Material | Cabinet ▸ Steel | ||
| Drawer | TKI-2 75 pcs | TKI-2-3 75 pcs | TKI-2-9 75 pcs |
| Notes | With lock | ||

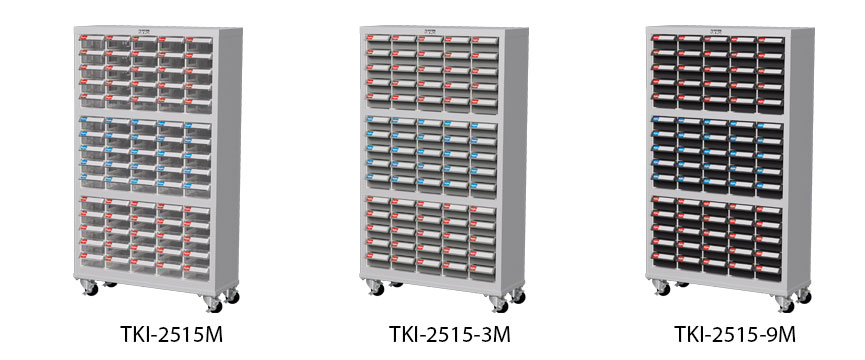

| Model No. | TKI-2515M | TKI-2515-3M | TKI-2515-9M |
|---|---|---|---|
| Dimensions | W585xD230xH1012 mm | ||
| Material | Cabinet▸Steel | ||
| Loading | 2" PU castors 210kg load capacity | ||
| Drawer | TKI-2 75 pcs | TKI-2-3 75 pcs | TKI-2-9 抽屜75 pcs |
| Model No. | TKI-2515DM | TKI-2515D-3M | TKI-2515D-9M |
|---|---|---|---|
| Dimensions | W648xD295xH1105 mm | ||
| Material | Cabinet▸Steel | ||
| Loading | 3" PU castors 900kg load capacity | ||
| Drawer | TKI-2 75 pcs | TKI-2-3 抽屜75 pcs | TKI-2-9 75 pcs |
| Notes | With lock | ||

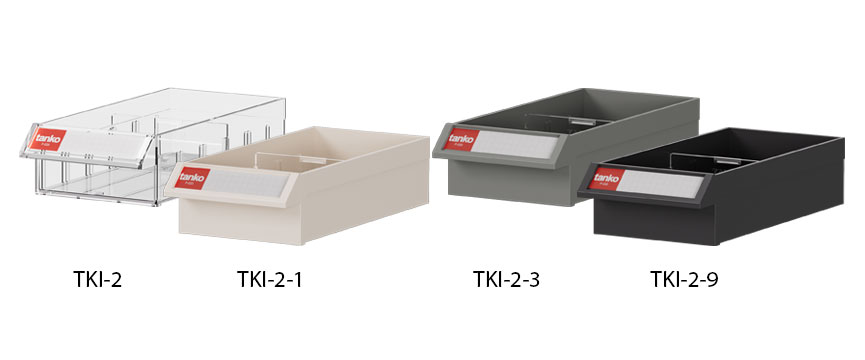

| Model No. | TKI-2 | TKI-2-3 | TKI-2-9 |
|---|---|---|---|
| Outer Dimensions | W100xD220xH52 mm | ||
| Inner Dimensions | W90xD192xH47 mm | ||
| Material | PS | ABS | PP |
| Color | Transparent | Gray | Black (anti-static) |
| Loading | 5kg | 10kg | 10kg |
| Notes | — | — | Surface resistance：104 ~ 106 ohm |
22 configurations. Every variant below has its own detail page.
| Model | Dimensions | Cabinet | Drawer | |
|---|---|---|---|---|
| TKI-2405 | W460xD230xH310 mm | TKI-2405 | PS (transparent) | Details → |
| TKI-2405-1 | — | TKI-2405 | ABS (white) | Details → |
| TKI-2405-3 | — | TKI-2405 | ABS (gray) | Details → |
| TKI-2405-9 | — | TKI-2405 | PP (black, anti-static) | Details → |

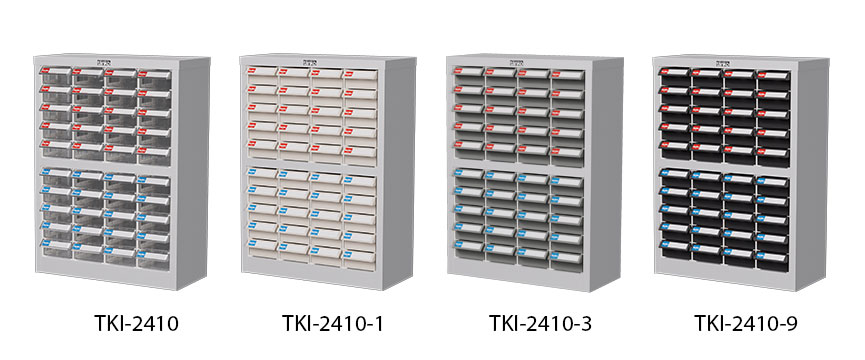

| TKI-2410 | W475xD230xH650 mm | TKI-2410 | PS (transparent) | Details → |
| TKI-2410-1 | — | TKI-2410 | ABS (white) | Details → |
| TKI-2410-3 | — | TKI-2410 | ABS (gray) | Details → |
| TKI-2410-9 | — | TKI-2410 | PP (black, anti-static) | Details → |

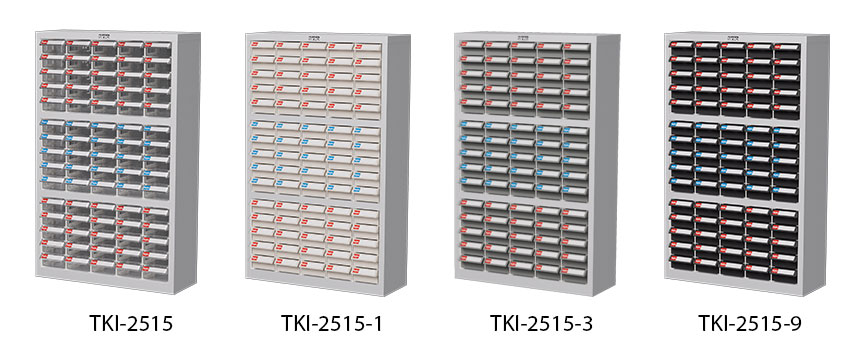

| TKI-2515 | W580xD230xH940 mm | TKI-2515 | PS (transparent) | Details → |
| TKI-2515-1 | — | TKI-2515 | ABS (white) | Details → |
| TKI-2515-3 | — | TKI-2515 | ABS (gray) | Details → |
| TKI-2515-3M | — | TKI-2515M (mobile) | ABS (gray) | Details → |
| TKI-2515-9 | — | TKI-2515 | PP (black, anti-static) | Details → |
| TKI-2515-9M | — | TKI-2515M (mobile) | PP (black, anti-static) | Details → |

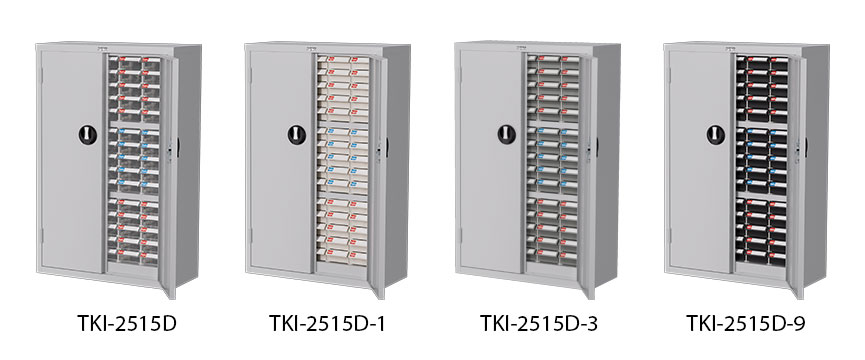

| TKI-2515D | W645xD295xH1000 mm | TKI-2515D (with doors) | PS (transparent) | Details → |
| TKI-2515D-1 | — | TKI-2515D (with doors) | ABS (white) | Details → |
| TKI-2515D-3 | — | TKI-2515D (with doors) | ABS (gray) | Details → |
| TKI-2515D-3M | — | TKI-2515DM (with doors/mobile) | ABS (gray) | Details → |
| TKI-2515D-9 | — | TKI-2515D (with doors) | PP (black, anti-static) | Details → |
| TKI-2515D-9M | — | TKI-2515DM (with doors/mobile) | PP (black, anti-static) | Details → |

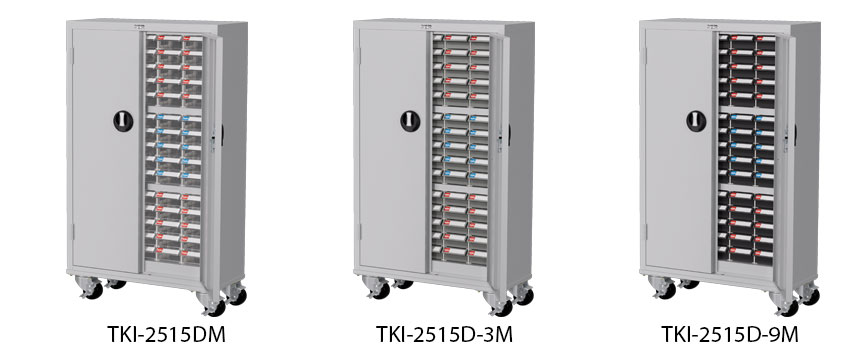

| TKI-2515DM | W648xD295xH1105 mm | TKI-2515DM (with doors/mobile) | PS (transparent) | Details → |
| TKI-2515M | W585xD230xH1012 mm | TKI-2515M (mobile) | PS (transparent) | Details → |
