Parts Cabinets
Parts Cabinet — Malaysia
Model No.TKI-1308
Manufactured in Taiwan by Tanko · Malaysia stock · nationwide delivery. Not all combinations are stocked — request a quote to confirm lead time.
-

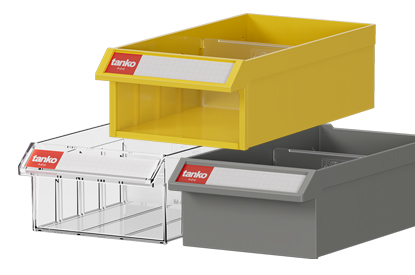

Drawer
-

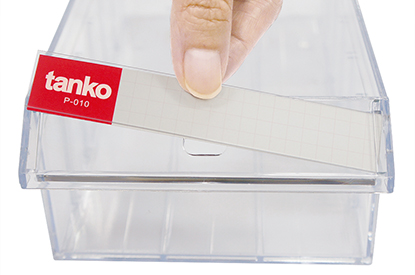

Colored label
-

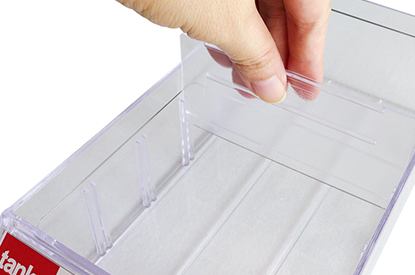

With divider
-

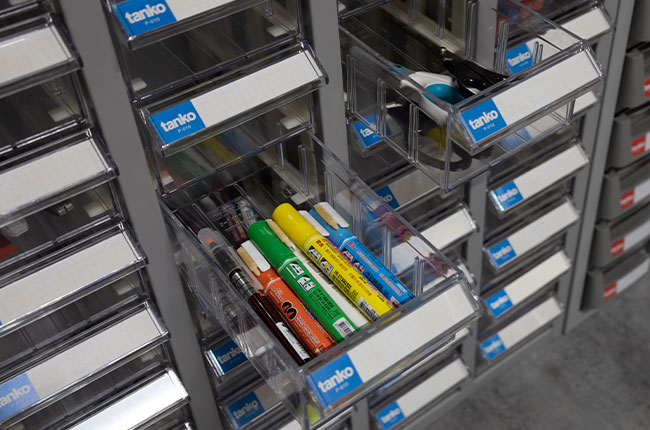

Drawer stop design
-

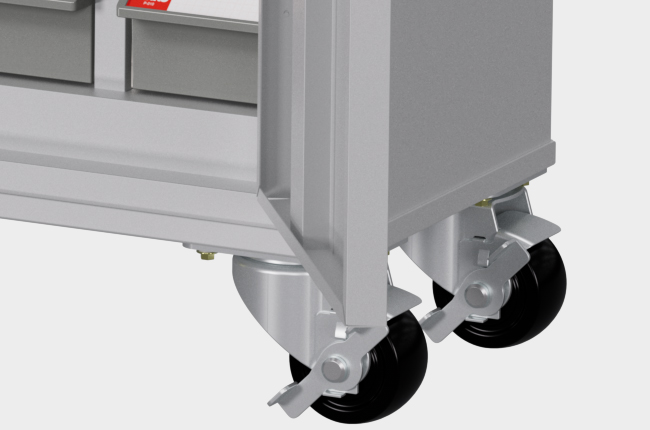

PU castors

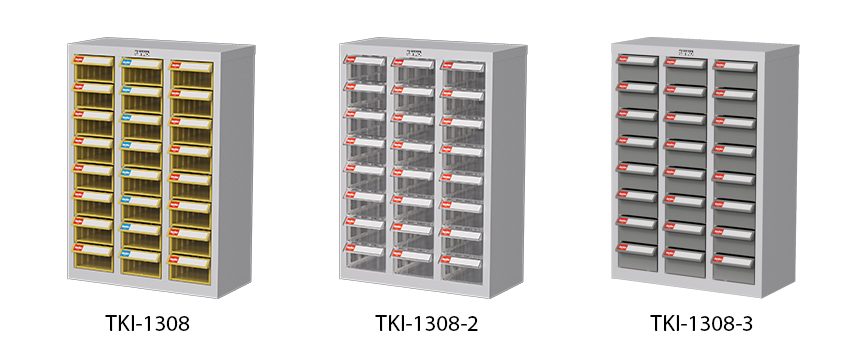

| Model No. | TKI-1308 | TKI-1308-2 | TKI-1308-3 |
|---|---|---|---|
| Dimensions | W450xD242xH650 mm | ||
| Material | Cabinet ▸ Steel | ||
| Drawer | TKI-1 24 pcs | TKI-1-2 24 pcs | TKI-1-3 24 pcs |

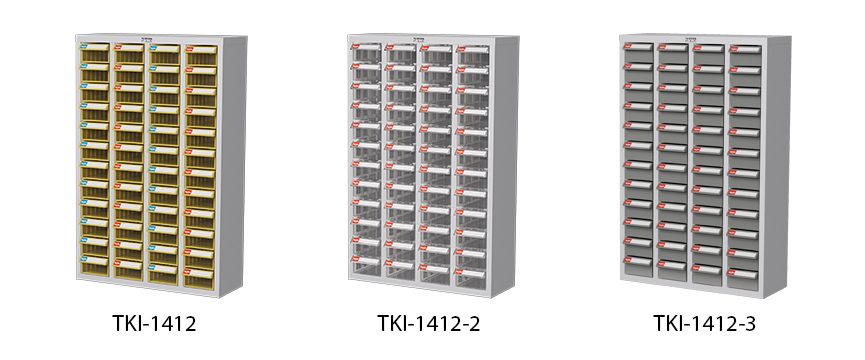

| Model No. | TKI-1412 | TKI-1412-2 | TKI-1412-3 |
|---|---|---|---|
| Dimensions | W600xD242xH940 mm | ||
| Material | Cabinet ▸ Steel | ||
| Drawer | TKI-1 48 pcs | TKI-1-2 48 pcs | TKI-1-3 48 pcs |

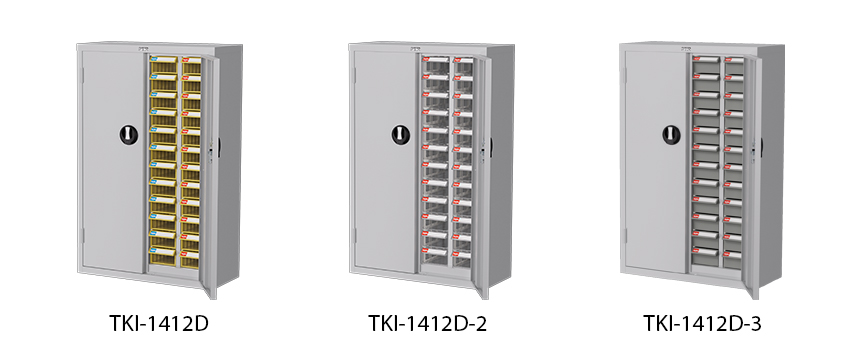

| Model No. | TKI-1412D | TKI-1412D-2 | TKI-1412D-3 |
|---|---|---|---|
| Dimensions | W645xD295xH1000 mm | ||
| Material | Cabinet ▸ Steel | ||
| Drawer | TKI-1 48 pcs | TKI-1-2 48 pcs | TKI-1-3 48 pcs |
| Notes | With lock | ||

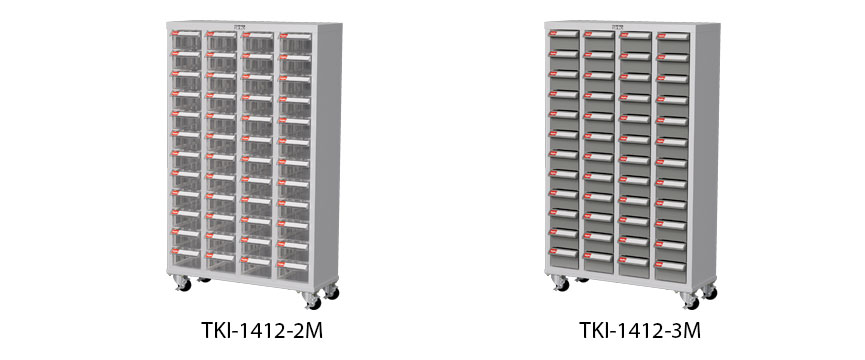

| Model No. | TKI-1412-2M | TKI-1412-3M |
|---|---|---|
| Dimensions | W605xD242xH1012 mm | |
| Material | Cabinet ▸ Steel | |
| Loading | 2" PU castors 210kg load capacity | |
| Drawer | TKI-1-2 48 pcs | TKI-1-3 48 pcs |

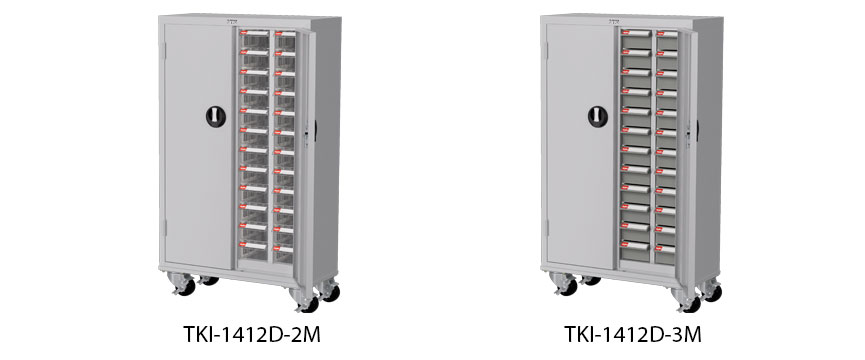

| Model No. | TKI-1412D-2M | TKI-1412D-3M |
|---|---|---|
| Dimensions | W648xD295xH1105 mm | |
| Material | Cabinet ▸ Steel | |
| Loading | 3" PU castors 900kg load capacity | |
| Drawer | TKI-1-2 48 pcs | TKI-1-3 48 pcs |
| Notes | With lock | |

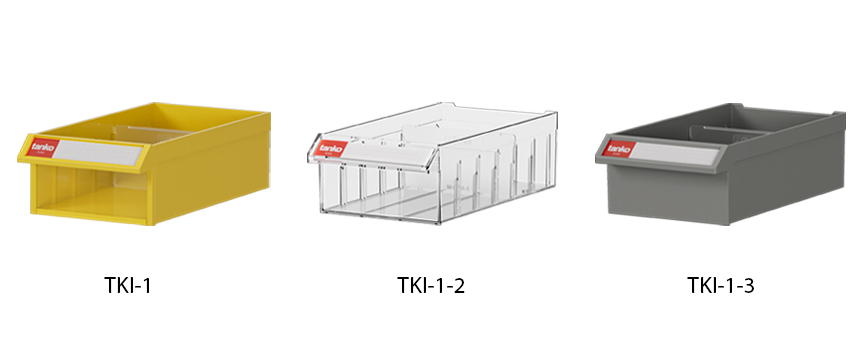

| Model No. | TKI-1 | TKI-1-2 | TKI-1-3 |
|---|---|---|---|
| Outer Dimensions | W120xD240xH70 mm | ||
| Inner Dimensions | W114xD212xH65 mm | ||
| Materials | ABS+PS | PS | ABS |
| Color | Yellow (transparent front window) | Transparent | Gray |
| Loading | 10kg | 6kg | 10kg |
13 configurations. Every variant below has its own detail page.
| Model | Dimensions | Cabinet | Drawer | |
|---|---|---|---|---|
| TKI-1308 | W450xD242xH650 mm | TKI-1308 | ABS+PS (yellow) | Details → |
| TKI-1308-2 | — | TKI-1308 | PS (transparent) | Details → |
| TKI-1308-3 | — | TKI-1308 | ABS (gray) | Details → |
| TKI-1412 | W600xD242xH940 mm | TKI-1412 | ABS+PS (yellow) | Details → |
| TKI-1412-2 | — | TKI-1412 | PS (transparent) | Details → |
| TKI-1412-2M | W605xD242xH1012 mm | TKI-1412M (mobile) | PS (transparent) | Details → |
| TKI-1412-3 | — | TKI-1412 | ABS (gray) | Details → |
| TKI-1412-3M | — | TKI-1412M (mobile) | ABS (gray) | Details → |
| TKI-1412D | W645xD295xH1000 mm | TKI-1412D (with doors) | ABS+PS (yellow) | Details → |
| TKI-1412D-2 | — | TKI-1412D (with doors) | PS (transparent) | Details → |
| TKI-1412D-2M | W648xD295xH1105 mm | TKI-1412DM (with doors/mobile) | PS (transparent) | Details → |
| TKI-1412D-3 | — | TKI-1412D (with doors) | ABS (gray) | Details → |
| TKI-1412D-3M | — | TKI-1412DM (with doors/mobile) | ABS (gray) | Details → |
