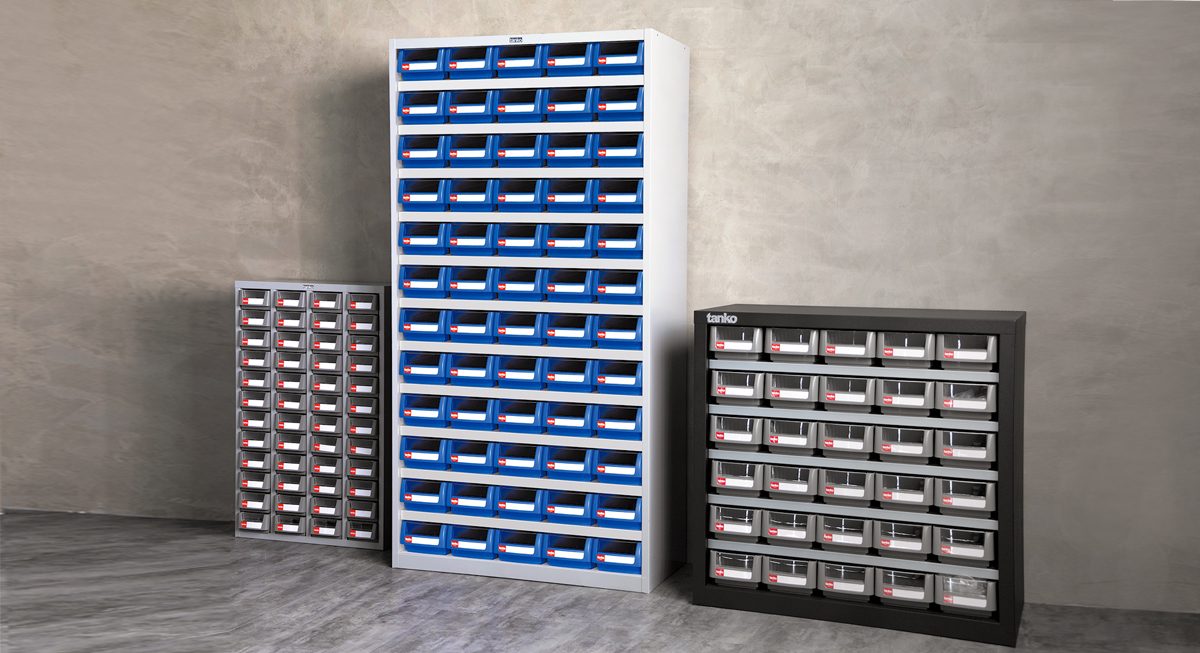

Parts Cabinet — Malaysia
Manufactured in Taiwan by Tanko · Malaysia stock · nationwide delivery. Not all combinations are stocked — request a quote to confirm lead time.
-

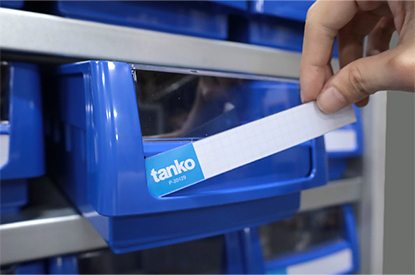

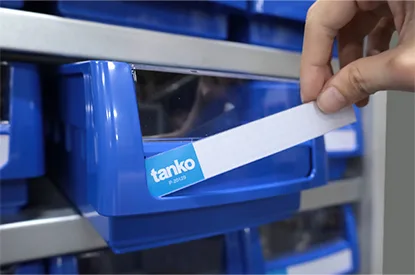

Colored label
-

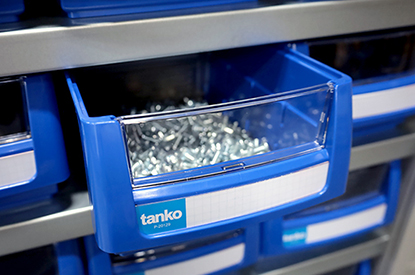

Transparent front window
-

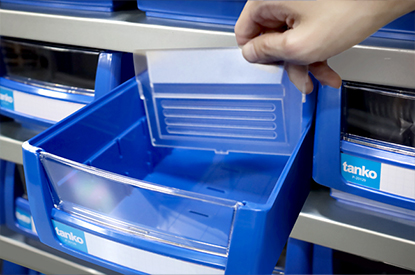

With divider
-

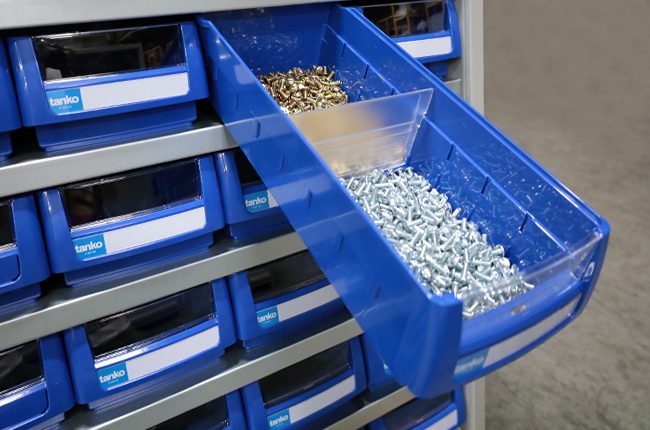

Drawer stop design
-

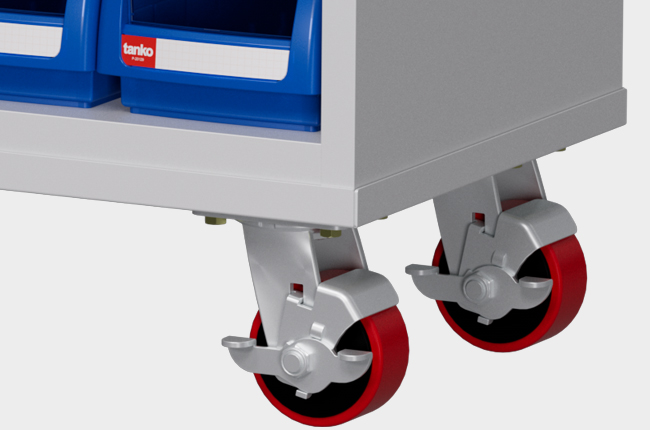

4" PU castors
1000kg load capacity
-

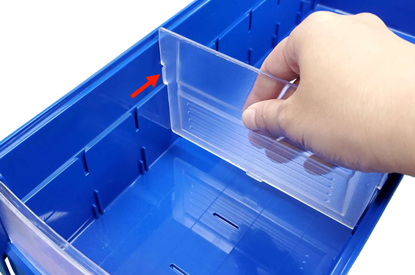

Step 1
-

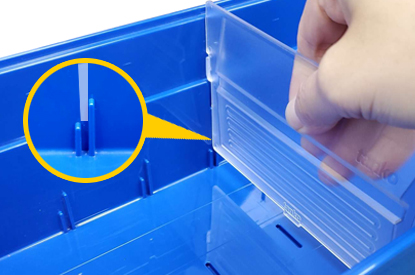

Step 2
-

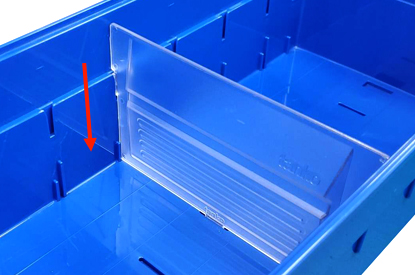

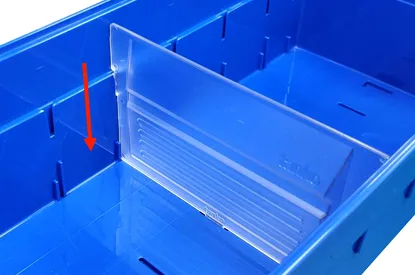

Step 3
-

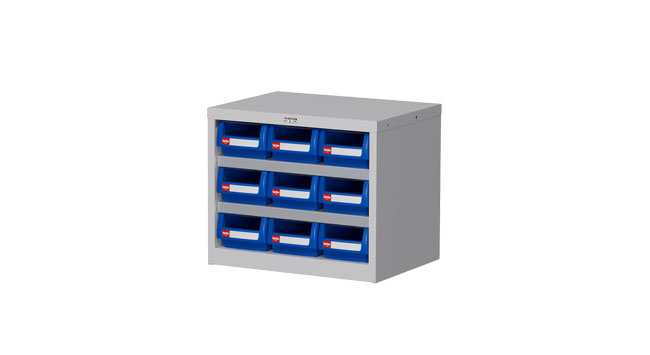

Model No.RA-309
- DimensionsW560xD420xH468 mm
- MaterialCabinet ▸ Steel

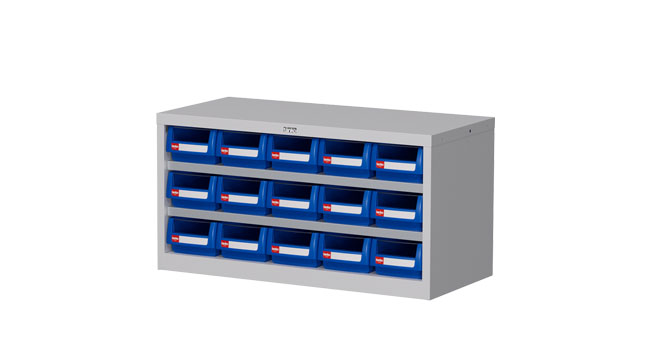

Model No.RA-515
- DimensionsW900xD420xH468 mm
- MaterialCabinet ▸ Steel

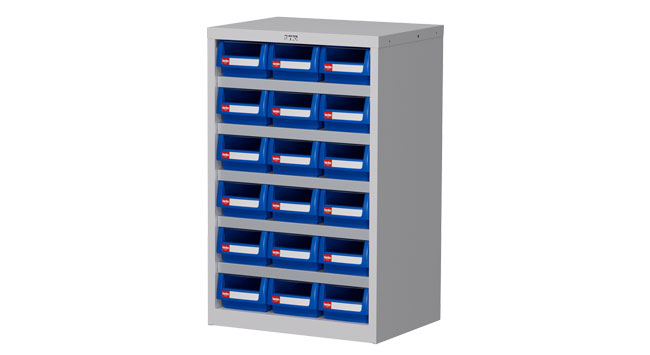

Model No.RA-318
- DimensionsW560xD420xH880 mm
- MaterialCabinet ▸ Steel

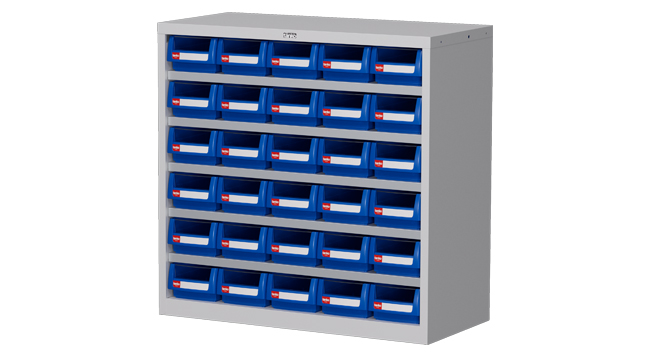

Model No.RA-530
- DimensionsW900xD420xH880 mm
- MaterialCabinet ▸ Steel

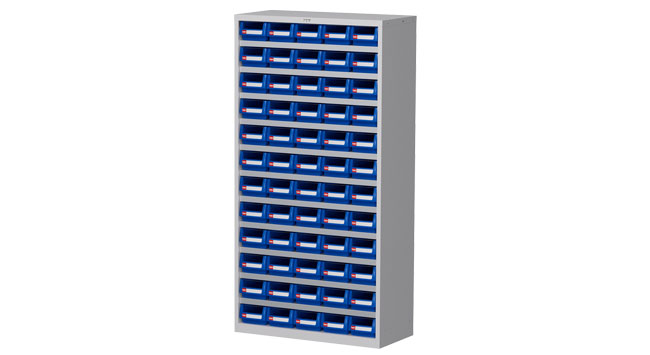

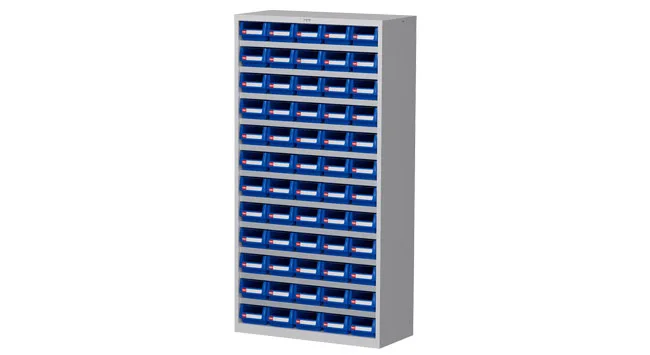

Model No.RA-560
- DimensionsW900xD420xH1760 mm
- MaterialCabinet ▸ Steel

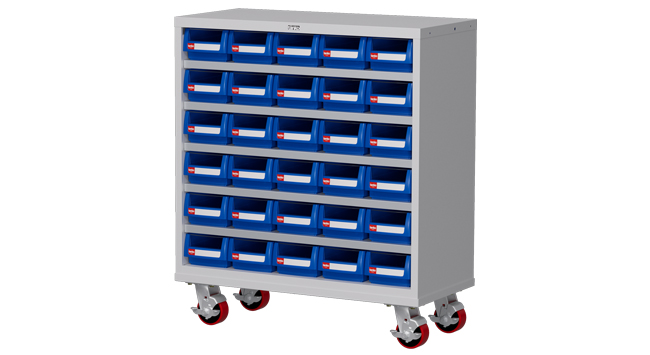

Model No.RA-530M
- DimensionsW904xD424xH1026 mm
- MaterialCabinet ▸ Steel

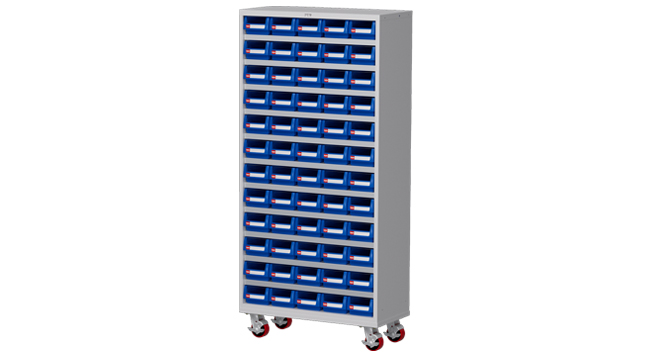

Model No.RA-560M
- DimensionsW904xD420xH1906 mm
- MaterialCabinet ▸ Steel

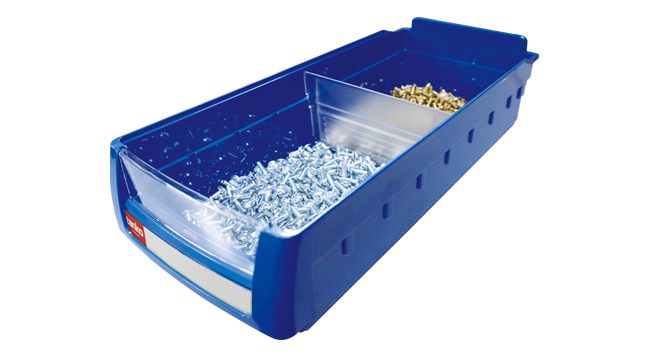

Model No.RA-1016
- DimensionsW168xD415xH115mm
- MaterialDrawer ▸ ABS
6 configurations. Every variant below has its own detail page.
| Model | Dimensions | Cabinet | Type | |
|---|---|---|---|---|
| RA-309 | W560xD420xH468 mm | RA-309 | Stand-alone | Details → |
| RA-318 | W560xD420xH880 mm | RA-318 | Stand-alone | Details → |
| RA-515 | W900xD420xH468 mm | RA-515 | Stand-alone | Details → |
| RA-530 | W900xD420xH880 mm | RA-530 | Stand-alone | Details → |
| RA-530M | W904xD424xH1026 mm | RA-530 | Mobile | Details → |
| RA-560M | W904xD420xH1906 mm | RA-560 | Mobile | Details → |
The RA-5 parts cabinet
RA-309 is a mobile parts cabinet built for higher-volume picking than the CEA-3 or CEH-3 lines — the whole unit is rated to 1000kg on its 4-inch PU castors, so a fully loaded cabinet can still be relocated across the shop floor. Every drawer carries the same transparent front window and colour-coded label as the rest of the range, plus a divider to keep small components in place, and the drawer stop design prevents a loaded drawer coming out by accident.
Six RA-5 configurations are available — see the comparison table above for drawer counts and dimensions. Primaxs holds Malaysia stock at our Seri Kembangan warehouse, with 3–7 working days on stocked items, free delivery and installation in Selangor and Kuala Lumpur, and a 1-year local warranty against manufacturing defects.
