CNC Tool Cabinet with Door — Malaysia
Manufactured in Taiwan by Tanko · Malaysia stock · nationwide delivery. Not all combinations are stocked — request a quote to confirm lead time.
-

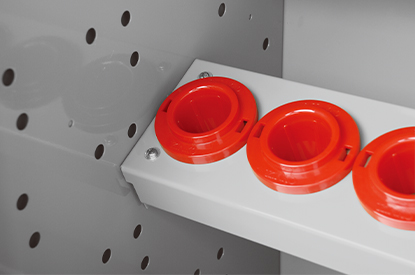

Tool holder rack
-

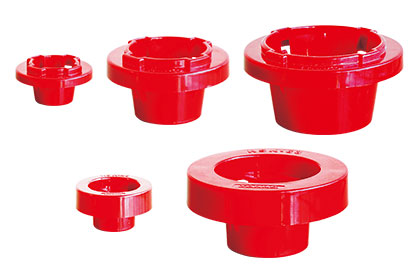

Tool holders
BT-30 / BT-40 / BT-50 / HSK-40 / HSK-63
-

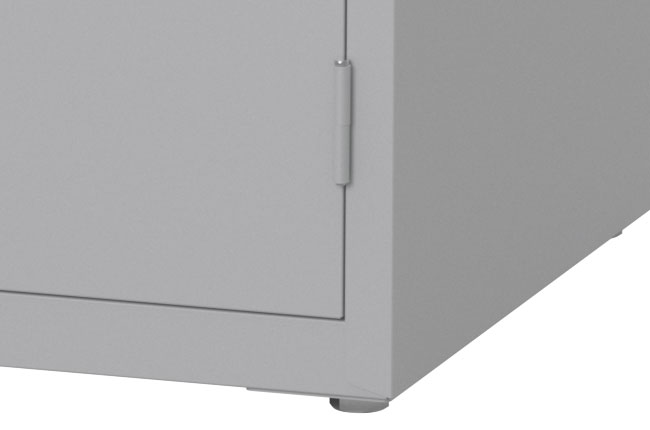

Handle with lock
-
With leveler screws
-
Made in Taiwan
-

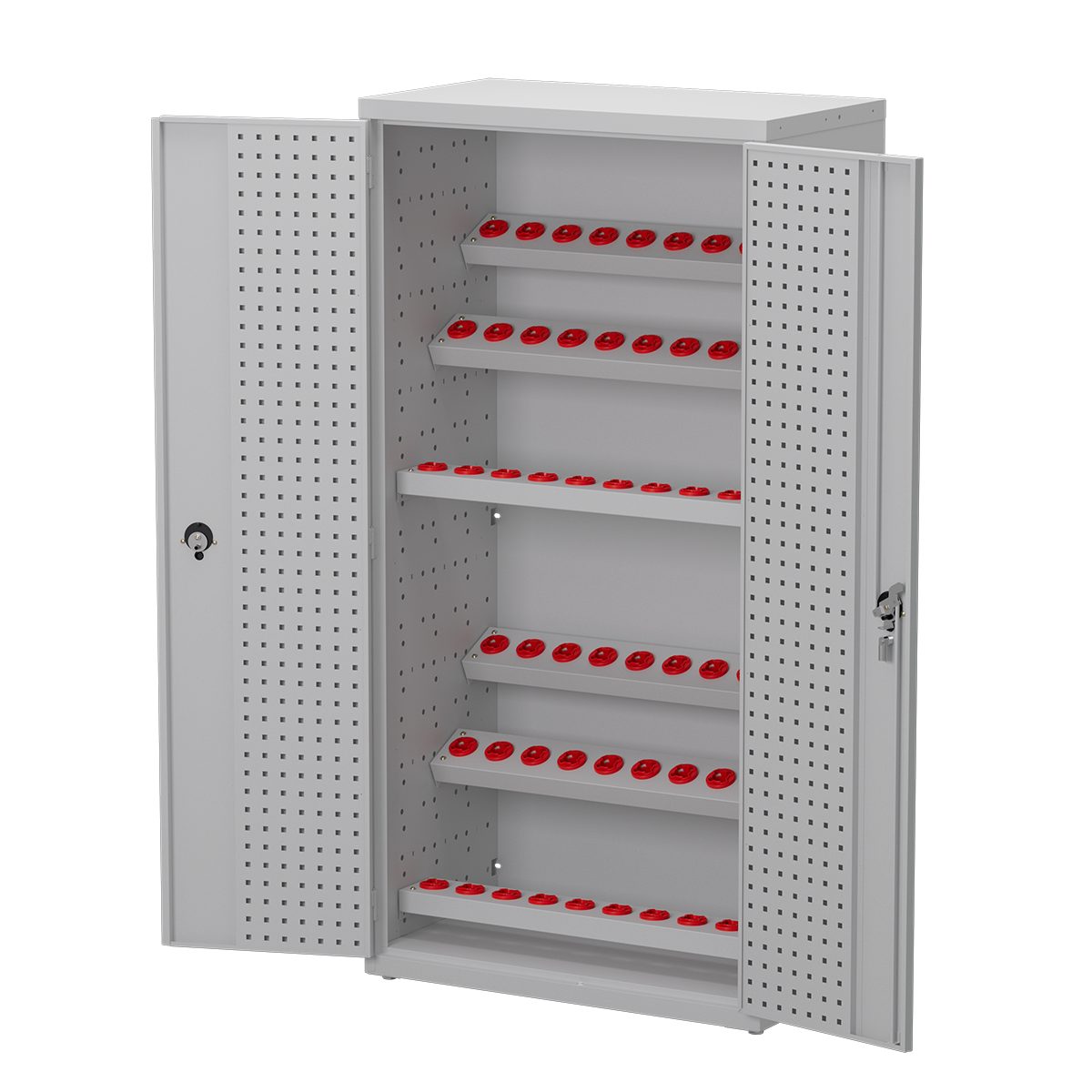

CNC Tool Cabinet with Door
With 6 tool holder racks
-
Unit of measurement：mm
Model No. Holders Holders Qty SAN-361 BT-30 60 SAN-362 BT-40 60 SAN-363 BT-50 42 SAN-366 HSK-40 60 SAN-368 HSK-63 42 Dimensions： W900xD515xH1780 mm -
Tool Holder Rack
-
Unit of measurement：mm
Model No. Holders Holders Qty ENP-61 BT-30 10 ENP-62 BT-40 10 ENP-63 BT-50 7 ENP-66 HSK-40 10 ENP-68 HSK-63 7
5 configurations. Every variant below has its own detail page.
The SAN-36 CNC tool cabinet with door
SAN-36 is the taller frame in Tanko's enclosed CNC cabinet range, giving more rack capacity than SAN-33 in the same footprint. The fitted tool holder rack is sized for BT-30, BT-40, BT-50, HSK-40 and HSK-63, and the lockable door keeps chips and coolant mist off the tapers between uses — a plain open shelf next to a machining centre collects both within a shift, and a trapped chip on a taper shows up as runout the next time it is loaded.
Leveler screws set the cabinet level on an uneven slab, and the lockable handle keeps tooling secured on a shared tool room floor. Five SAN-36 configurations are available — see the comparison table above for exact rack layouts. Primaxs holds Malaysia stock at our Seri Kembangan warehouse, with 3–7 working days on stocked items, free delivery and installation in Selangor and Kuala Lumpur, and a 1-year local warranty against manufacturing defects.
