CNC Trolley — Malaysia
Manufactured in Taiwan by Tanko · Malaysia stock · nationwide delivery. Not all combinations are stocked — request a quote to confirm lead time.
-

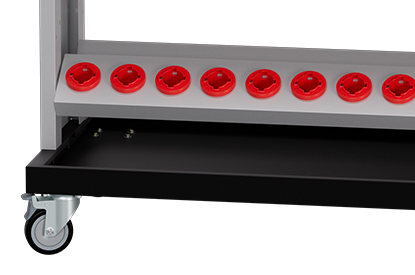

Bottom tray
-

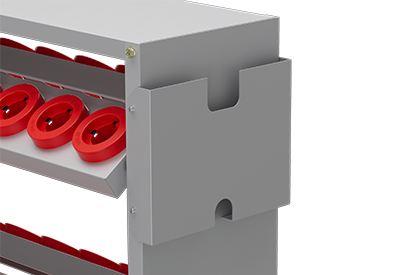

A4 document holder
-

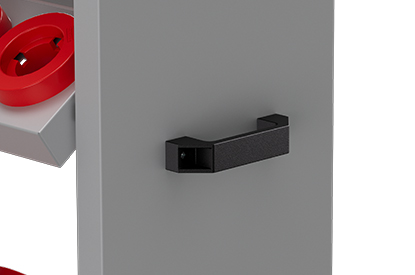

Handles
-

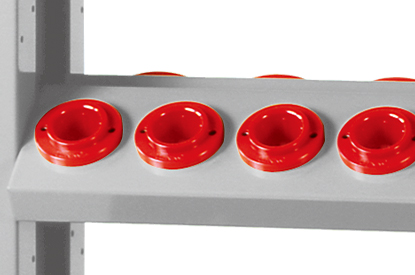

Tool holder rack
-

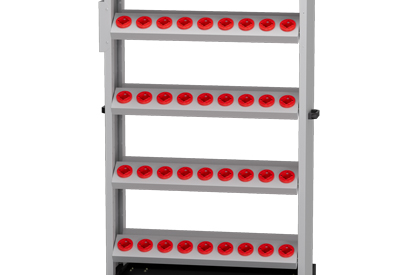

With 8 tool holder racks
-

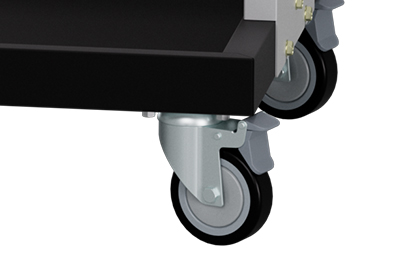

4" PU castors
400kg load capacity
-
Made in Taiwan
-
ENR CNC Trolley
Total holders = 8 tool holder racks
-
Unit of measurement：mm
Model No. Holders Holders Qty ENR-1218M BT-30 80 ENR-1228M BT-40 72 ENR-1238M BT-50 56 ENR-1268M HSK-40 80 ENR-1288M HSK-63 64 Dimensions： W1047xD613xH1585 mm -
Tool Holder Rack
-
Unit of measurement：mm
Model No. Holders Holders Qty ENP-21 BT-30 10 ENP-22 BT-40 9 ENP-23 BT-50 7 ENP-26 HSK-40 10 ENP-28 HSK-63 8 Dimensions： W893xD142xH45 mm
5 configurations. Every variant below has its own detail page.
The ENR-12 CNC trolley
ENR-12 is a mobile CNC trolley built around a bottom tray and a dedicated tool holder rack, so tapers travel from the crib to the spindle without sitting loose against each other in an open drawer. Eight tool holder racks come fitted as standard, sized for the common BT and HSK interfaces used across Tanko's CNC range. An A4 document holder keeps setting sheets and travellers with the tooling rather than back at a desk, and full-length handles make the trolley easy to steer one-handed between machines on a busy floor.
The trolley rides on 4-inch PU castors rated to 400kg, so it can carry a full rack load across a workshop floor without the wheels becoming the limiting factor. Five configurations are available across the ENR-12 line — see the comparison table above for exact rack counts and dimensions. Primaxs holds Malaysia stock for popular ENR-12 configurations at our Seri Kembangan warehouse, with 3–7 working days on stocked items, free delivery and installation in Selangor and Kuala Lumpur, and a 1-year warranty against manufacturing defects administered locally, not shipped back to Taiwan.
