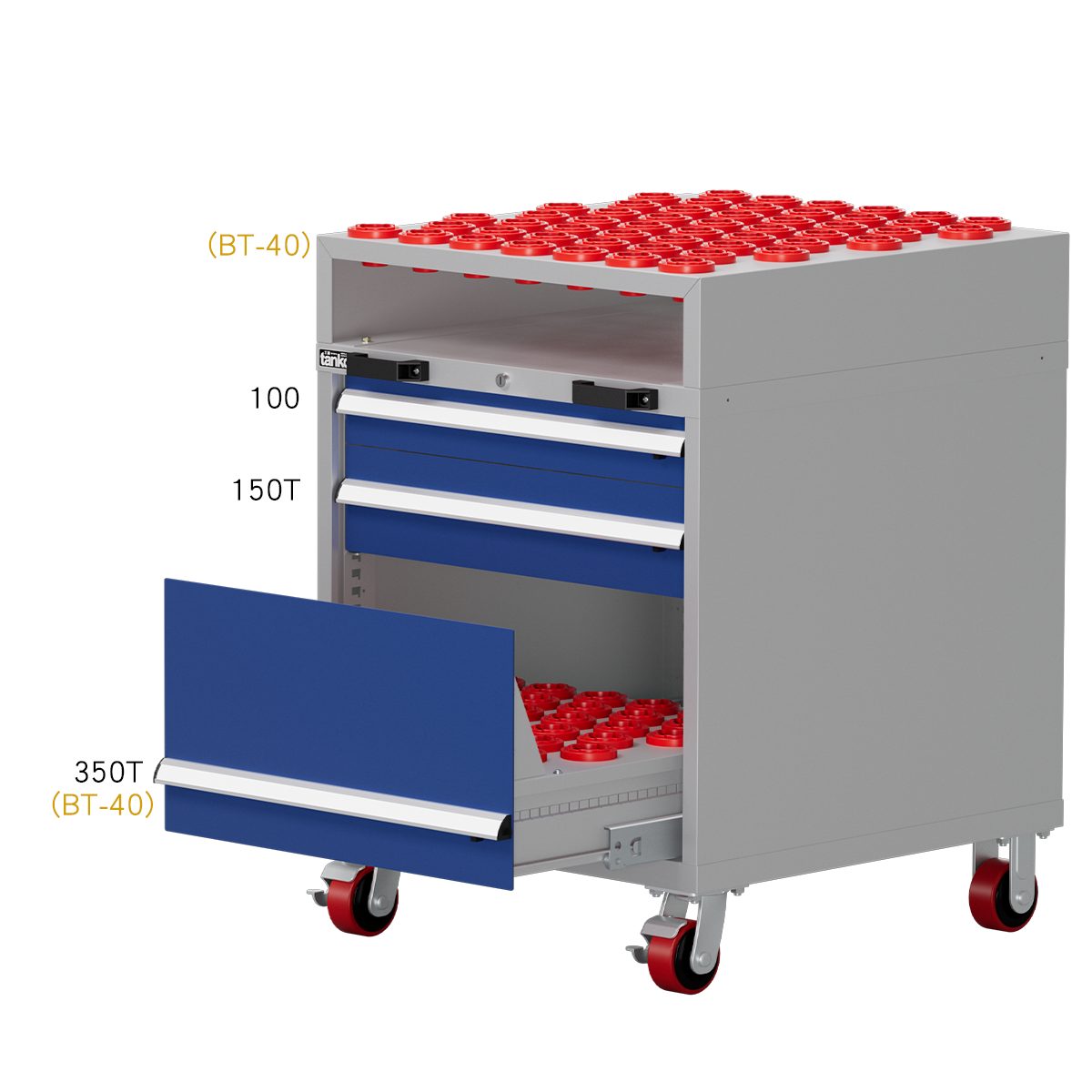

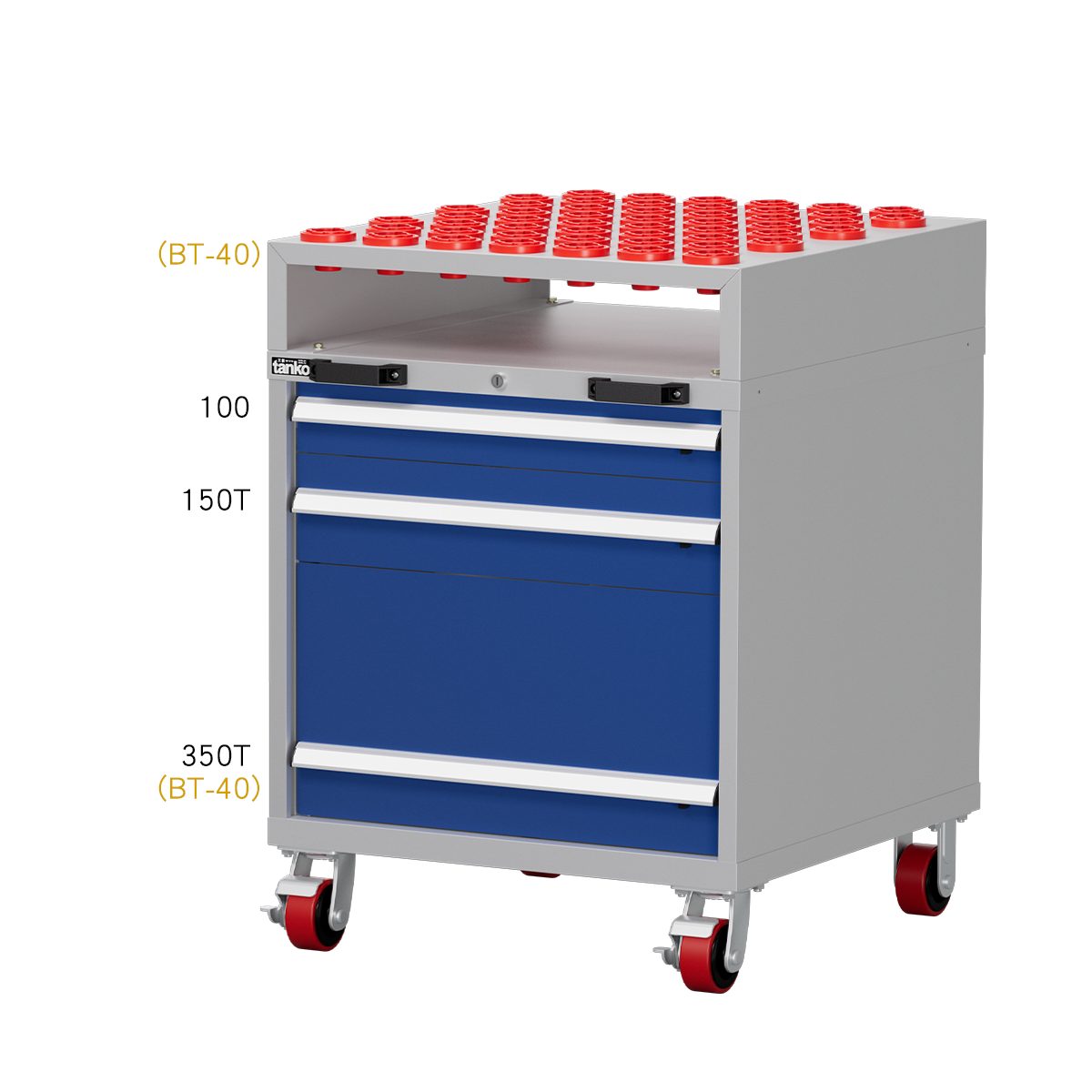

Mobile CNC Tool Cabinet - H1000 ED-7031-22MN

The ED-7031-22MN is a mobile CNC tool cabinet measuring W718xD792xH994mm, configured with 2 tool drawers for BT-40 holders. Every taper sits in its own pocket rather than loose in a general drawer, which is the difference between a ground surface that still runs true in year three and one that has been quietly chipped by its neighbours.

Capacity is set by the 718mm-wide, 759mm-deep ED body: the drawer trays hold 46 BT-30, 39 BT-40, 23 BT-50, or 46 HSK-40 or 23 HSK-63. The upper tray adds a further 52 BT-40 or 72 BT-30. Drawers are rated at 100kg each, or 200kg on the deeper T drawers that carry the larger tapers.

Being mobile, it goes to the machine instead of making the operator walk to the tool crib and back for every changeover. Supplied in Malaysia by Primaxs Marketing (M) Sdn Bhd, the exclusive Tanko distributor since 2006 — quoted in Ringgit, with a 1-year warranty against manufacturing defects administered here in Selangor. Free delivery and installation in Selangor and Kuala Lumpur; outstation delivery is itemised on the quote.
